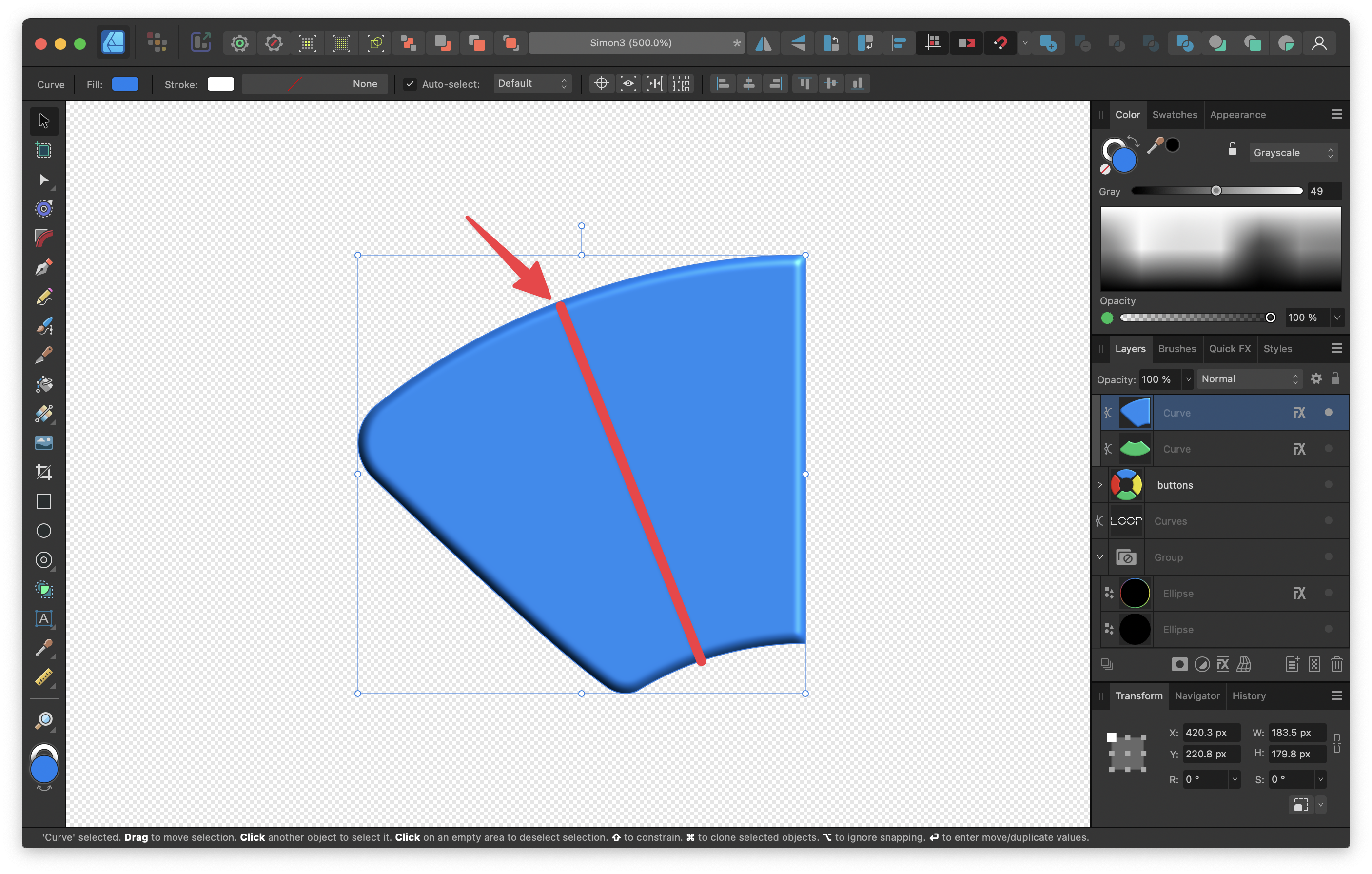

I'm trying to split this shape in half as shown in red in the attached screenshot, but I'm not sure how to do this. It's in a square and straight container, and the node tool doesn't seem to be stopping at the shape's symmetrical middle along the path.

Screenshot 2023-12-07 at 9.39.21 AM.png

Posted

Have you tried using the Knife tool?

Affinity Photo 2.6..; Affinity Designer 2.6..; Affinity Publisher 2.6..; Affinity2 Beta versions. Affinity Photo,Designer 1.10.6.1605 Win11 Home Version:24H2, Build: 26100.1742: Intel(R) Core(TM) i7-5820K CPU @ 3.30GHz, 3301 Mhz, 6 Core(s), 12 Logical Processor(s);32GB Ram, Nvidia GTX 3070, 3-Internal HDD (1 Crucial MX5000 1TB, 1-Crucial MX5000 500GB, 1-WD 1 TB), 4 External HDD; Wacom Intuos 3 PTZ-431W

Posted

You can also use a straight curve and the boolean divide option.

Create a line curve from the centre of the donut shape and use the transform panel to accurately rotate the curve, make sure the transform origin is positioned at the end of the curve (centre of donut)


Select both the curve and the shape you want to cut and use the boolean divide option.


You should end up with the shape cut into two parts.


iMac 27" 2019 Sequoia 15.0 (24A335), iMac 27" Affinity Designer, Photo & Publisher V1 & V2, Adobe, Inkscape, Vectorstyler, Blender, C4D, Sketchup + more... XP-Pen Artist-22E, - iPad Pro 12.9
B| (Please refrain from licking the screen while using this forum)

Affinity Help - Affinity Desktop Tutorials - Feedback - FAQ - most asked questions

Posted
42 minutes ago, 80sTherapy said:

I haven't, but it doesn't look like the knife tool can detect a tilted shape's geometric center.

The knife tool has no precision, so it's certainly not surgical, more skilled butchers.

iMac 27" 2019 Sequoia 15.0 (24A335), iMac 27" Affinity Designer, Photo & Publisher V1 & V2, Adobe, Inkscape, Vectorstyler, Blender, C4D, Sketchup + more... XP-Pen Artist-22E, - iPad Pro 12.9
B| (Please refrain from licking the screen while using this forum)

Affinity Help - Affinity Desktop Tutorials - Feedback - FAQ - most asked questions

Posted
3 hours ago, firstdefence said:

The knife tool has no precision, so it's certainly not surgical, more skilled butchers.

I must confess that I don't get the Knife Tool at all! There always seems to be a better option in my work. If it followed the usual snapping rules, then perhaps I'd have a use for it. And maybe it is suited to other styles such as more organic shapes.

Does anyone have a good video that shows the power of the Knife over other tools such as Shape Builder, Pen Tool, Boolean operations, etc?
