RainerH Posted December 3, 2023 Share Posted December 3, 2023 Hello everyone, When I place an image and change the distance below the image frame, the text that follows it "jumps" when I change the distance under the image instead of the distance between the image and the text being continuously changed. Please take a lock to the attached video. Can someone help. Thank you in advance. Rainer Abstand unter Bild.mp4 Quote Link to comment Share on other sites More sharing options...

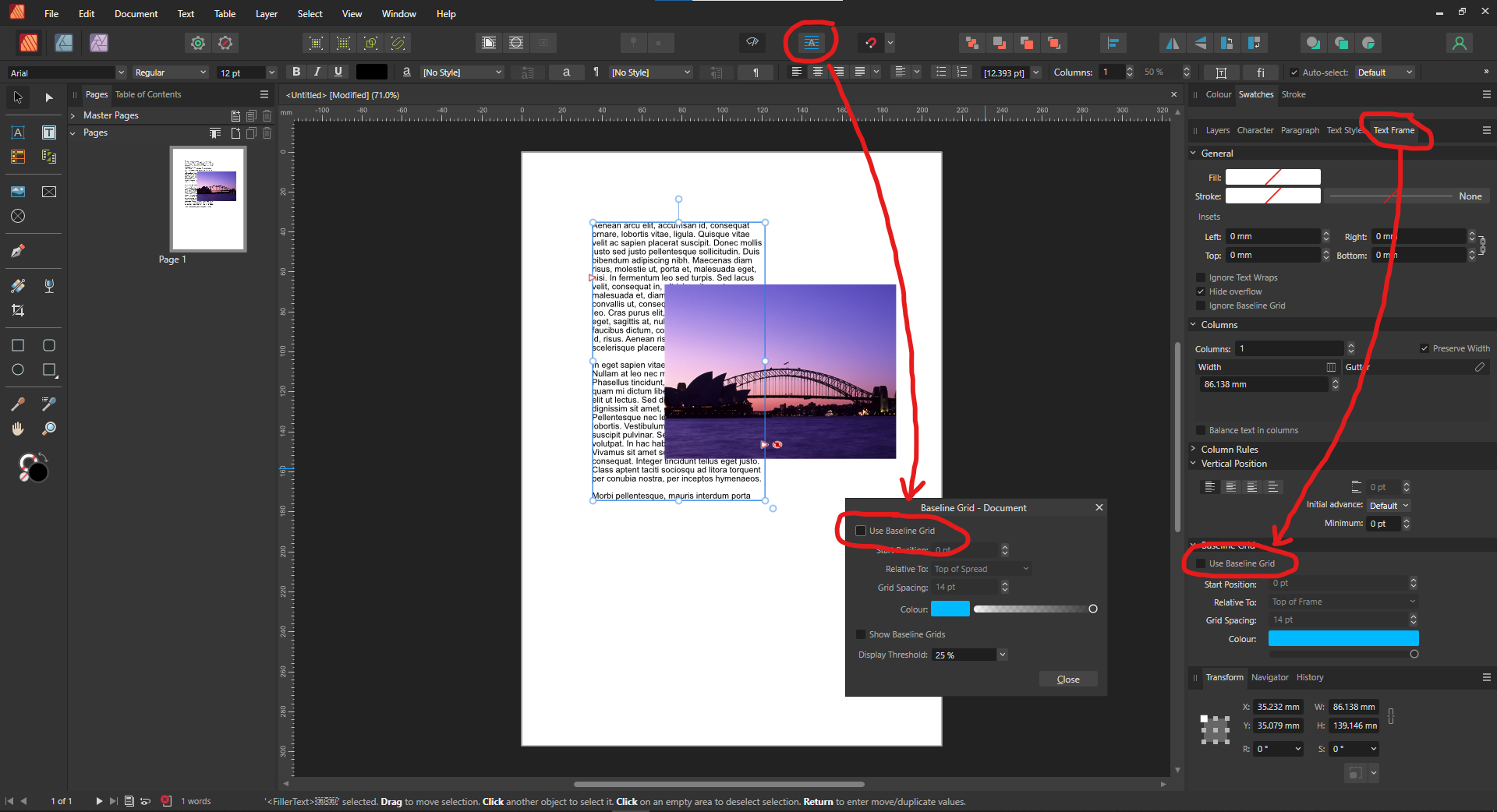

GarryP Posted December 3, 2023 Share Posted December 3, 2023 Are you sure that both the document baseline grid and the text frame baseline grid are switched off? See attached image where they are both off. Quote Link to comment Share on other sites More sharing options...
RainerH Posted December 3, 2023 Author Share Posted December 3, 2023 Yes both aren't activated so that the Baselinegrid isn't in usage. Please can you select the picture in your example and then choose the text wrapping settings (1) and make the picture interrupting the textflow (2). If you then in- / decrease the gap between picture and text (3) what happens? Quote Link to comment Share on other sites More sharing options...
walt.farrell Posted December 3, 2023 Share Posted December 3, 2023 You could also have Baseline Grid enabled in a Text Style, or in the Paragraph panel, I think. Have you checked there, too? Can you provide a sample .afpub document for us to examine? That's easier than guessing at all the settings that could be involved. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro, version 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro, version 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. iPad: iPad Pro M1, 12.9": iPadOS 17.4.1, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sonoma 14.4.1 Link to comment Share on other sites More sharing options...
RainerH Posted December 3, 2023 Author Share Posted December 3, 2023 I can't post the document I'm working on, but the behavior in the attached file is the same. If I increas or decrease the gap between the object an the text, the Lines are jumping like byseline grid is activatet. When I encrease the lower gap from 1 to 2 mm, the line after the object jumps down, when I then encrease from 2 to 6 mm nothing happens. At 7 mm the 1st line jumps down to take the place of le line that was line two bevore reaching 7 mm. example.afpub walt.farrell 1 Quote Link to comment Share on other sites More sharing options...
walt.farrell Posted December 3, 2023 Share Posted December 3, 2023 Thanks for the example. So far, I'm not seeing anything to explain that behavior. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro, version 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro, version 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. iPad: iPad Pro M1, 12.9": iPadOS 17.4.1, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sonoma 14.4.1 Link to comment Share on other sites More sharing options...
MikeW Posted December 3, 2023 Share Posted December 3, 2023 16 minutes ago, walt.farrell said: Thanks for the example. So far, I'm not seeing anything to explain that behavior. The Jump setting also acts the same in 1.10.x, too. Tried new documents made in 1.10.x and 2.3 APub as well with same result. walt.farrell 1 Quote Link to comment Share on other sites More sharing options...
MikeTO Posted December 3, 2023 Share Posted December 3, 2023 This is a known issue with Text Wrap = Jump (see two more threads below) but Serif hasn't acknowledged it as a bug. It doesn't actually have anything to do with baseline grid but with the Jump setting flowing text as if it as set to Square or Tight. IMO it's a bug, the Bottom Distance from Text setting doesn't work as expected with Jump. With Square/Tight, Bottom is supposed to be the minimum distance but with Square/Tight it should be a fixed distance. This is the way it works in most other apps but in Publisher Bottom works as the minimum distance for Jump. I believe Serif says this is by design because they're using using the same code for Jump as for Square/Tight. For example, using the test doc shared by the OP above, change wrap to Square or Tight and then drag the wrapped shapes bottom size handle slowly downward. You'll see the text jump one line at a time because it has to given the text flow. Then change it back to Jump and you'll see it doing the same thing. If you repeat the test in another app such as Microsoft Word you'll see the way it should work. Screen Recording 2023-12-03 at 10.25.31 AM.mov walt.farrell and MikeW 1 1 Quote Download a free manual for Publisher 2.4 from this forum - expanded 300-page PDF My system: Affinity 2.4.2 for macOS Sonoma 14.5, MacBook Pro 14" (M1 Pro) Link to comment Share on other sites More sharing options...
