Affinity Designer V2.3 single line strokes exported as curves

[Jolly]



Can I get help with 2.3? I have exported a single stroke design and the export result has expanded the lines (SVG). I have never had this happen before only since updating to version 2.3 today.

I export the strokes in order to have draw lines. Is this a bug that has been noted?

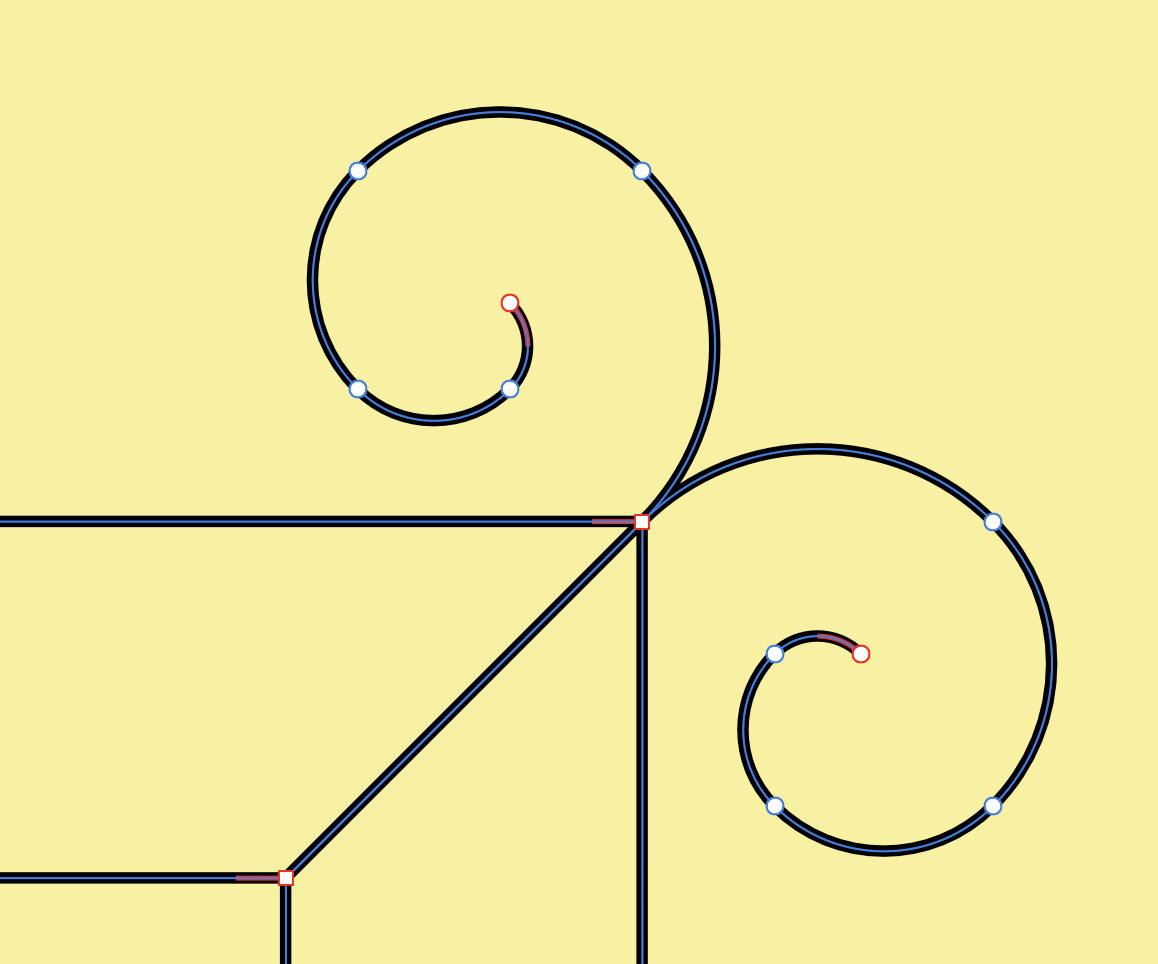

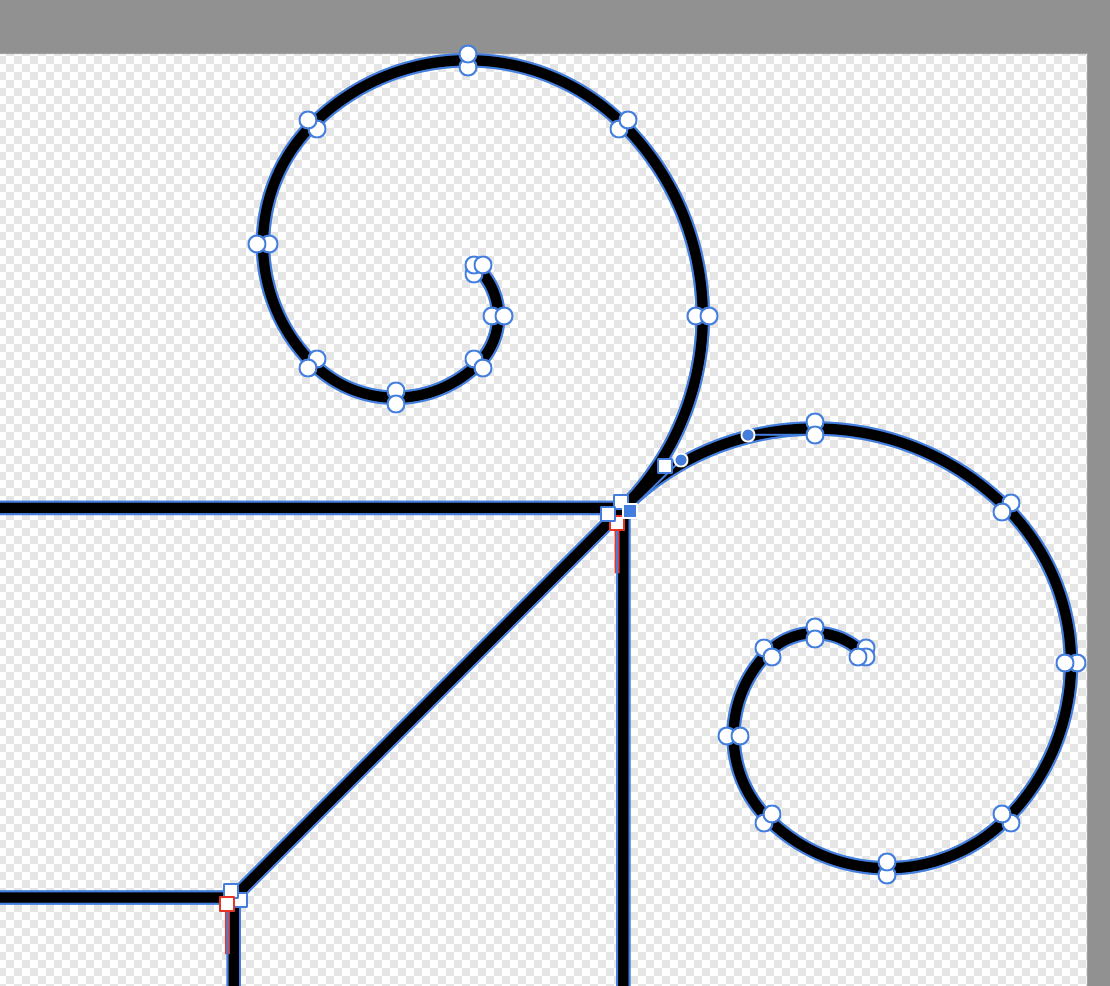

First picture with yellow background shows design before export. Second picture shows the SVG file after export.

I have not changed any settings and have exported with the same export preset I have been using for a couple of years.

[MikeTO]

I'm not able to duplicate this issue with 2.3 on macOS. Could you share a test file?

[loukash]

20 minutes ago, Jolly said:

I have exported a single stroke design and the export result has expanded the lines (SVG).

This will happen if you have (accidentally) changed the stroke from "Solid Line Style" to "Solid Pen" brush – which will optically look the same on the canvas.

[loukash]

9 minutes ago, loukash said:

"Solid Pen" brush

11 minutes ago, Jolly said:

Spiral Tool copy.afdesign

Although no brush was applied, the Pressure attribute has a redundant extra node, making it "technically" a pressure sensitive stroke that will always expand on export by design.
Reset the pressure and that fixes it.

[Jolly]

Thank you so much for your help. I have learnt something new today and am very grateful. I will go and fix it now.

[loukash]

4 minutes ago, Jolly said:

I have learnt something new today

So have I, for that matter! Or did you think I knew it just off the top of my head…?

[Jolly]

I did think that! I really appreciate your help.
