Has anyone had problem with exported SVG not being as designed ?

[0xN1C0]

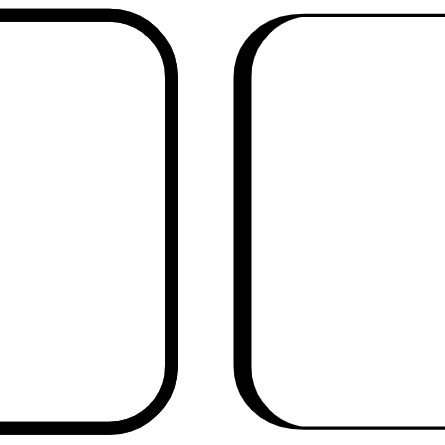

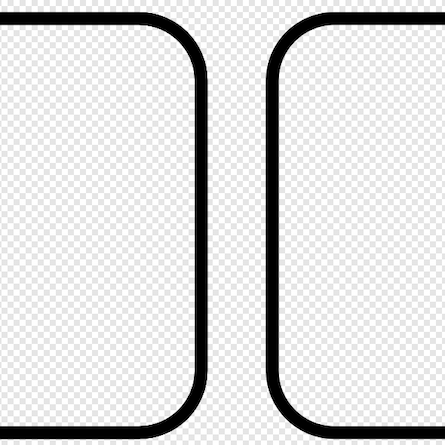

I have some screenshots about the problem. If you look at the stroke (2px) you will see a difference on the SVG (White BG).

Has anyone had this issue ?

Im on MacOS Ventura.

Thank you!





Edited March 13, 2023 by N1C0

[firstdefence]

Can you upload the Affinity Designer file and or the SVG?

[0xN1C0]

Hello, of course.

Here are the files. The project file and exported SVG.

Thank You!

problem.afdesign problem.svg

[GarryP]

Interesting.
When I exported to SVG only the long rectangle showed a problem.
I don’t see anything wrong with the document (not an extensive examination) but I notice that if I select the long rectangle and use the Geometry Add functionality on it then the document exports as expected.

Note: This is on Windows 10.

Edited March 14, 2023 by GarryP
Added note.

[v_kyr]

When exporting to SVG enable the "Flatten transforms" option under the more button and retry exporting & previewing in an external tool (webbrowser etc.).

[0xN1C0]

1 hour ago, GarryP said:

Interesting.
When I exported to SVG only the long rectangle showed a problem.
I don’t see anything wrong with the document (not an extensive examination) but I notice that if I select the long rectangle and use the Geometry Add functionality on it then the document exports as expected.

Note: This is on Windows 10.

Yes the problem is only on the long rectangle and your solution works on MacOS too.



1 hour ago, v_kyr said:

When exporting to SVG enable the "Flatten transforms" option under the more button and retry exporting & previewing in an external tool (webbrowser etc.).

This is also a working solution. And yes I view the SVGs in Safari, Firefox and Brave (Chromium).



Thank You for your answers

Do you have any idea why this is ? Is it a "feature" or is it a bug ?

[GarryP]

My guess is that it’s one of those weird one-off bugs that pop up sometimes but I’m not certain.

You could add a bug report – linked to this discussion – so that the developers could look at it, and they should be able to find out.

If you can remember (at least some of) the steps you took to create the document then that would help from a diagnostic angle.
