Publisher: table row alternating background fill + rows "escaping" from table after import from .indd

[Sophie Gauthier]

Hellooooo people!

I haven't been able to find anything about filling rows with alternating colors in a table. I am trying to migrate from Adobe and I am having trouble with tables in general. I did study the help about tables but I still quite confused with the whole table thing.

Also I imported a table from .indd and most of the rows are 'out of frame' (see attached). What's up with that?

Anyone has an explanation, a tip, a youtube, a blog ?

Warm waves from South of France 👋

[David in Яuislip]

Table formatting is a bit quirky but keep at it and you'll have a lightbulb moment

This is one way of formatting in V1
Main table at top, dummy table 1 column, 4 rows to create style below

Select cells of dummy and set cell fill in Table panel



Add style from selection to Styles panel

Select main table and apply style

[Sophie Gauthier]

OH MY! 😍 🙏 🙌 MASSIVE THANKS! 🙌 🙏😍
... for your very swift and useful response!
🤸‍♂️🤸‍♂️🤸‍♂️ I did it! 🤸‍♂️🤸‍♂️🤸‍♂️ yeheeeeeeeee!

[Sophie Gauthier]

Now onto the other table challenge. I've been exploring every tool and box to check/uncheck but am still at loss with this:

When imported from .indd, my tables (I have a lot, otherwise I would just rebuild from scratch) appear this way:
the main frame (black arrow selection) is rightly positionned but the "inside frame" (with the rows and text and stuff -white arrow selection-) is shifted up and out of frame.
I can't seem to be able to "shift it back into" main frame.
Any help very appreciated 🙏

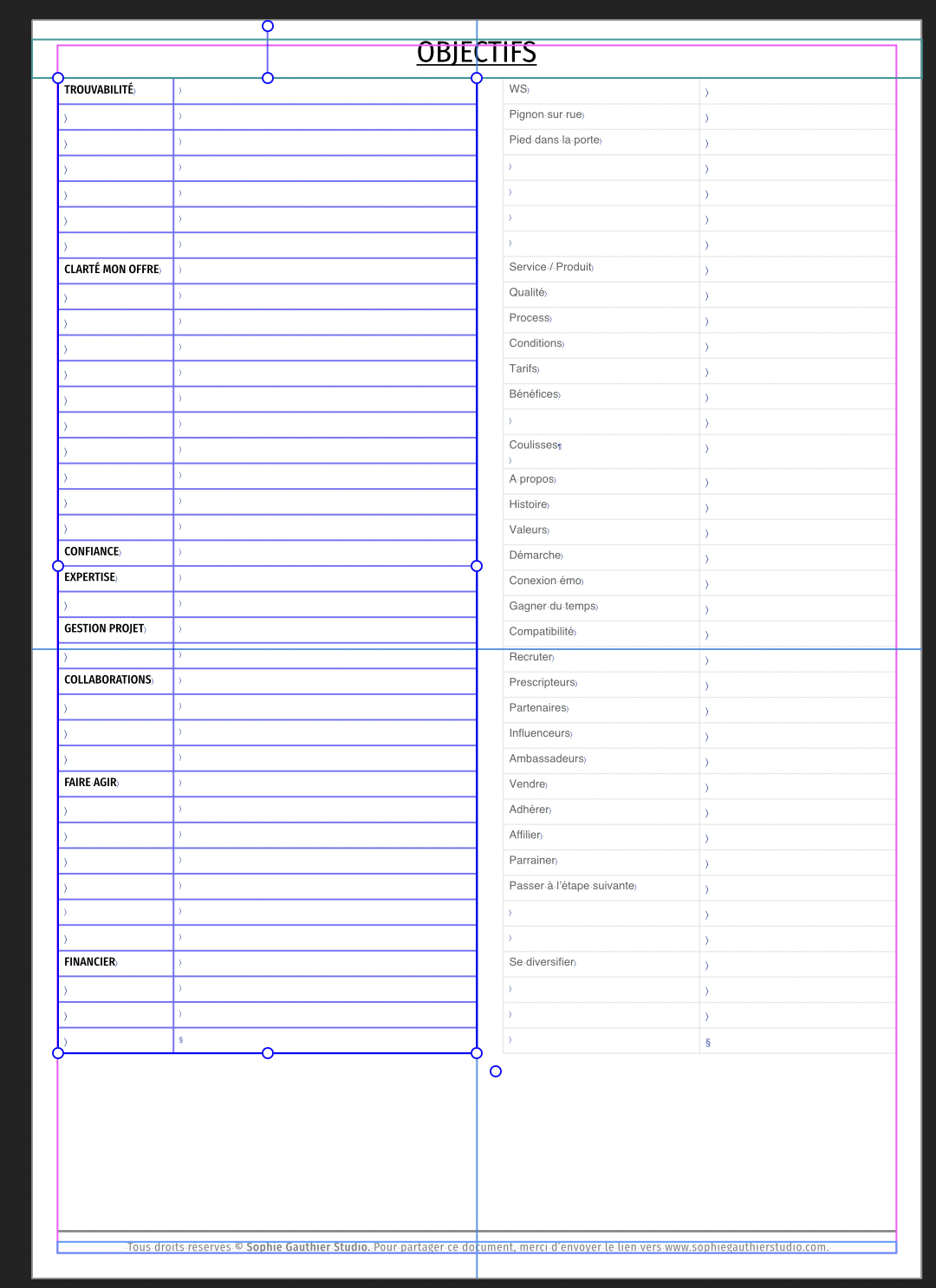

This is how it is supposed to look :

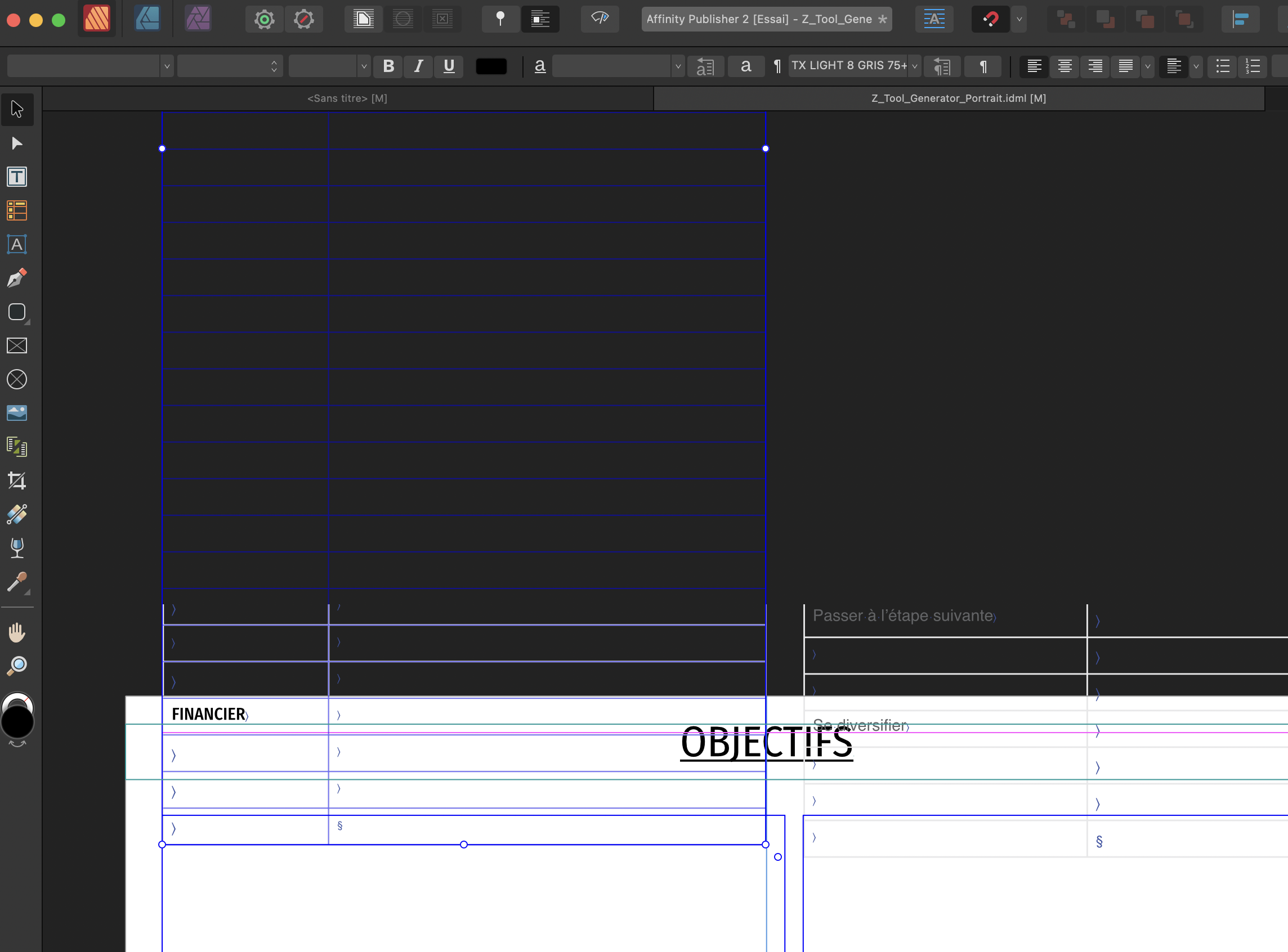

After import, you can see the rows all "gone up"

This is how it looks like with preview mode:



[stokerg]

On 3/1/2023 at 8:20 AM, Sophie Gauthier said:

the main frame (black arrow selection) is rightly positionned but the "inside frame" (with the rows and text and stuff -white arrow selection-) is shifted up and out of frame.
I can't seem to be able to "shift it back into" main frame.

Could you attach the IDML file you show in your screenshot and I'll take a look at what's happening and see if there's anything that can be done   If you'd rather not attach the IDL file, you can upload it to our private Dropbox here.

[Sophie Gauthier]

Hey there! I appreciate your help, thanks!

here it iiiiiis

Z_Tool_Generator_Portrait.idml.afpub

[stokerg]

@Sophie Gauthier,

Very odd, it appears the table is also part of a text box.  Can't say I've seen this happen before.  Could you also attach the original IDML file, so I can just check the file out in InDesign and see how that page is made up?

[carl123]

On 3/1/2023 at 8:20 AM, Sophie Gauthier said:

the main frame (black arrow selection) is rightly positionned but the "inside frame" (with the rows and text and stuff -white arrow selection-) is shifted up and out of frame.
I can't seem to be able to "shift it back into" main frame.

Your 2 tables are pinned to 2 text frames but it's the bottom of the tables that are pinned to the top of the text frame which is why they are "out of frame"

Can't see any reason why the tables need to be pinned to text frames so the easiest solution seems to be to Unpin the 2 tables using the Pinning Studio. Delete the (now) redundant text frames then position the 2 tables where you want them on the page.

The 2 tables will now line up as regards the rows of the table but they will go out of sync again as Row 15 on the right-hand table has an extra Return character at the end of the text (So, just delete that Return character)

Note: Should the text frames be important for any reason, just unpin the tables reposition the tables then re-pin them to the text frame. They will now be correctly pinned from the top of the tables to the top of the text frame



@stokerg may be able to advise you on why this has happened after he has looked at the IDML file



[Sophie Gauthier]

Woaow thanks guys!

I will study it carefully, this pinning studio thing is new to me.
meanwhile here is the original.

Great way to learn 🙂

Z_Tool_Generator_Portrait.idml Z_Tool_Generator_Portrait.indd

[Sophie Gauthier]

Hey there!
I've been working on it and @carl123 you have found the trick, thanks a lot.
I have been able to delete the text frames.

As the FAQ is for V1 and am on V2, I still having been able to find the way to the pinning options, but I have managed to unpin via a pin button on the top tool bar.

Just out of curiosity you might want to know that I had indeed built the tables within text frames in InDesign.
I have gone back to Adobe and, yeah, I cannot (or do not know how to) build a table without inserting it into an existing text frame (at least on CS6). Hence the text frames...
Anyway, glad I could get out of this one, learn, and keep on my migration!
To both of you @stokerg and @carl123, again, very thankful!

Take care everyone ❤️



[Old Bruce]

6 hours ago, Sophie Gauthier said:

As the FAQ is for V1 and am on V2, I still having been able to find the way to the pinning options, but I have managed to unpin via a pin button on the top tool bar.

There is the Pinning Panel. Publisher (V1) View > Studio > Pinning and for Publisher 2 Window > Text > Pinning. This offers the Pin Unpin as well.

[Sophie Gauthier]

15 hours ago, Old Bruce said:

There is the Pinning Panel. Publisher (V1) View > Studio > Pinning and for Publisher 2 Window > Text > Pinning. This offers the Pin Unpin as well.

Thanks Old Bruce!

Pour les français, c'est Fenêtre > Texte > Épingler

Cheers!
