Bug when pasting charts from Graphpad prism to AD2

[Starpugs]

Hi， I am a scientific field worker who works with GraphPad prism a lot. You may hear about this software. Anyway, I found when I pasting charts from Graphpad prism to AD2, the STROKE width always went wrong. But the same thing never happend when I pasting to AI. I have attached specific pictures you can refer to. I believe this is a small problem, can you please tell me if it can be solved quickly? This is causing me to be completely unable to work with AD2.

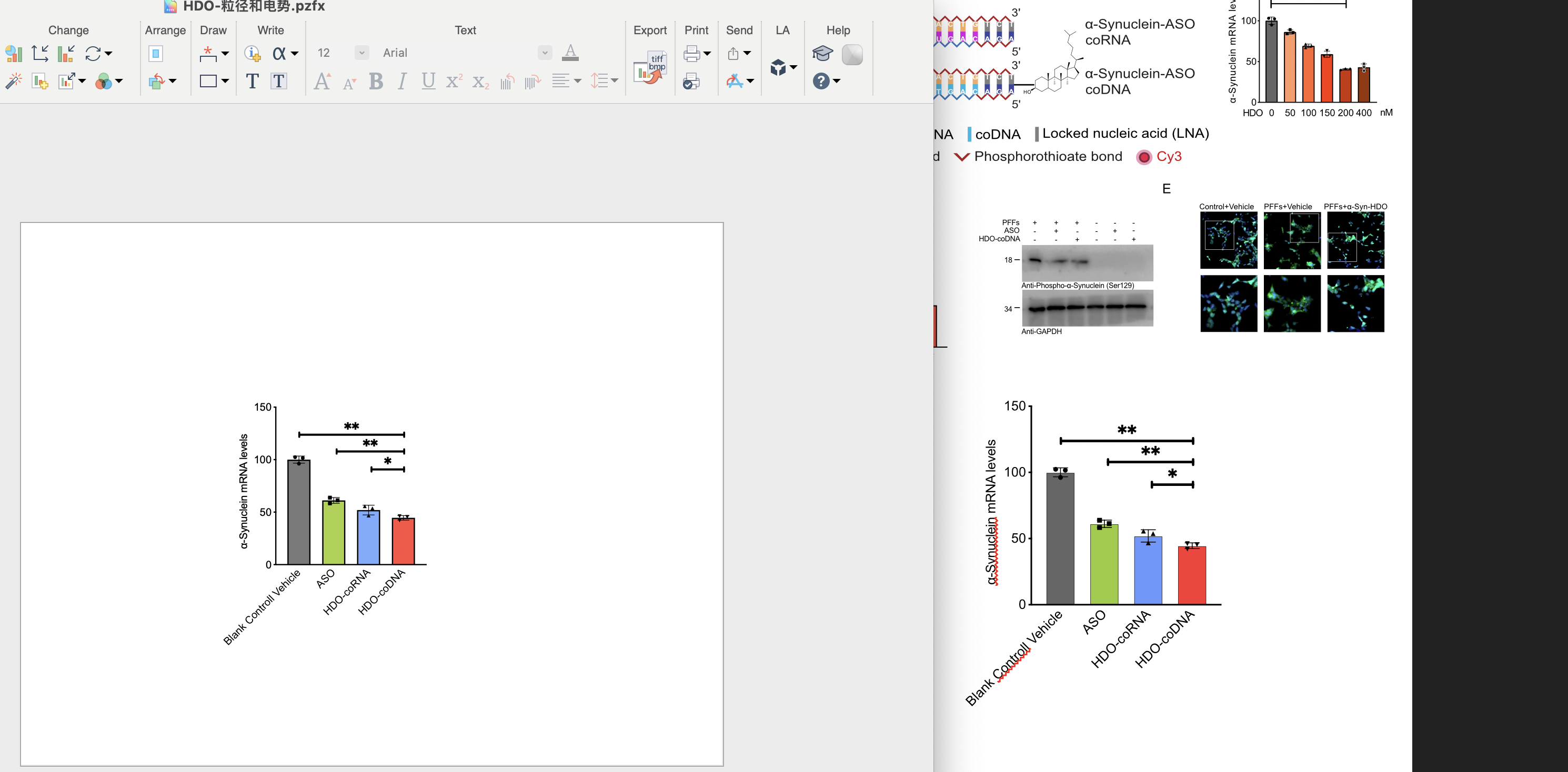

This one is what happened when I pasted things to AD2, you can see the stroke went wrong before I did anything.

and this one is the same chart in AI, nothing unnormal.

[v_kyr]

I don't see much differences, or don't know where to look concrete here. Maybe encircling the areas of interest in red where to look after in comparison would be hellpful in order to see what you mean.

Other than that there's probably a difference in doc size resolution, aka 72 DPI vs 96 DPI here when copying/pasting for the apps.

[Starpugs]

On 2/28/2023 at 6:21 PM, v_kyr said:

2023年2月28日下午6:21，v _ kyr 说:

I don't see much differences, or don't know where to look concrete here. Maybe encircling the areas of interest in red where to look after in comparison would be hellpful in order to see what you mean.

我看不出有什么不同，或者说不知道在哪里看起来更具体一些。也许将感兴趣的区域用红色包围起来，比较一下，这样会有助于理解你的意思。

Other than that there's probably a difference in doc size resolution, aka 72 DPI vs 96 DPI here when copying/pasting for the apps.

除此之外，在为应用程序复制/粘贴时，文档大小的分辨率可能有所不同，也就是72 DPI 和96 DPI。

The difference is in the strokes of the columns, I think it is obvious that the thickness of the strokes of the columns copied into AD2 has changed.

[v_kyr]

6 hours ago, Starpugs said:

The difference is in the strokes of the columns, I think it is obvious that the thickness of the strokes of the columns copied into AD2 has changed.

Scale both to the same size for a better visual determination of the stroke size differences. Or even better export from both apps AI/ADe as SVG and check (compare) inside the SVG file within a texteditor the concrete stroke size values and the amount of difference here.

[Starpugs]

8 hours ago, v_kyr said:

Scale both to the same size for a better visual determination of the stroke size differences. Or even better export from both apps AI/ADe as SVG and check (compare) inside the SVG file within a texteditor the concrete stroke size values and the amount of difference here.

The svg image has been attached, the strokes in the original file in Prism are set to 1 pt
The strokes of a pt chart copied to AD2 become 0.5 pt, while in AI they remain 1 pt.
Also, when setting stroke thickness for groups, AI does not set strokes for text objects, yet AD2 sets strokes for text objects by default. This is really annoying.

AD2.svg AI.svg Straight form prism.pdf

[v_kyr]

8 hours ago, Starpugs said:

The svg image has been attached, the strokes in the original file in Prism are set to 1 pt ...

In that "Straight form prism.pdf" file the line and rect-curves strokes are always 1.4 px.

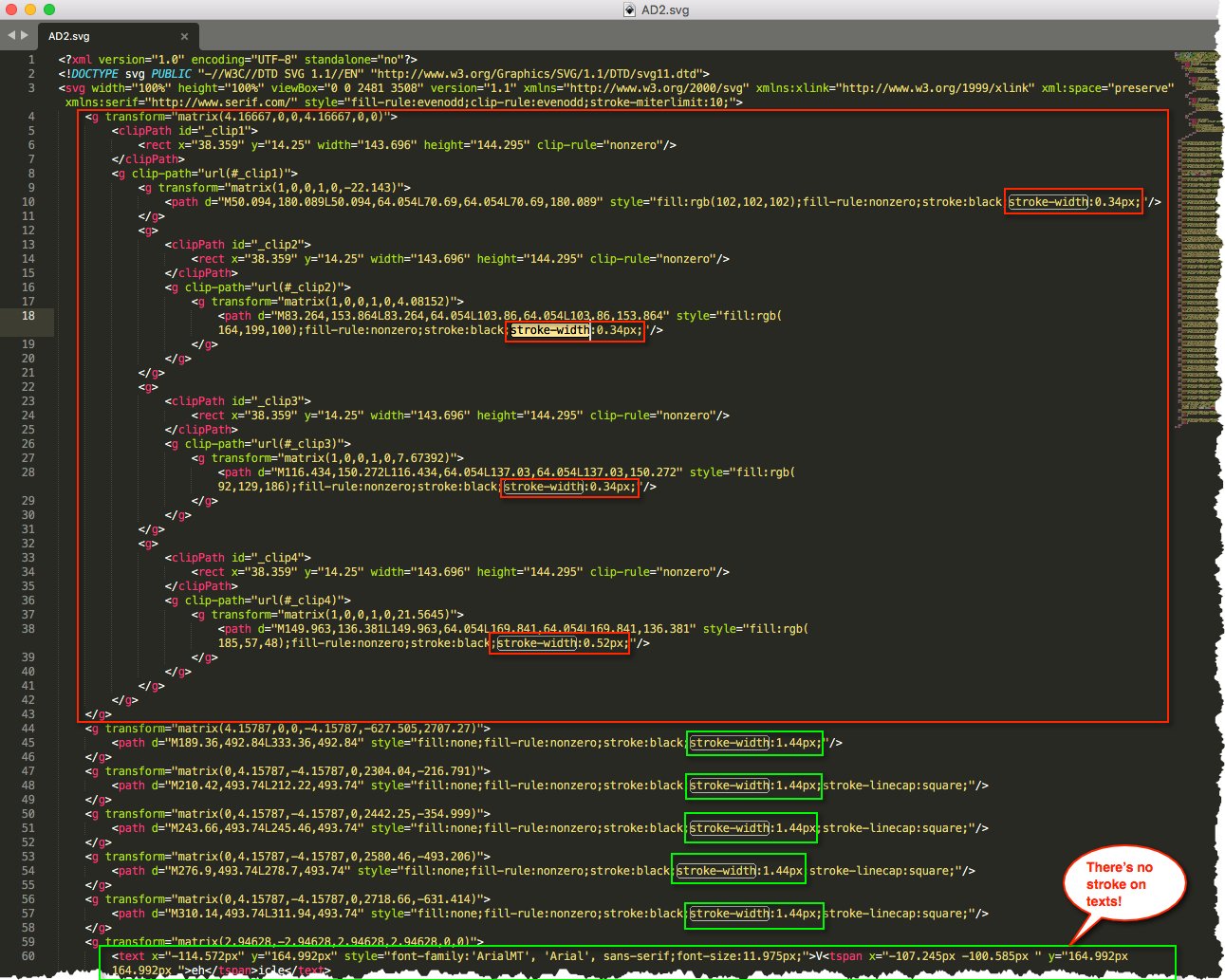

In the "AD2.svg" file the clip-path transforms have other stroke sizes, everything else looks Ok stroke wise and has 1.44 px. And there aren't any strokes applied to the text portions there.



If you import that "Straight form prism.pdf" file into ADe and export as SVG from inside of ADe, then the reviewed and generated SVG code looks Ok in terms of stroke-sizes etc. - You maybe better might export instead from that Graphpad app as PDF/SVG and then reimport that into ADe.

[Starpugs]

3 hours ago, v_kyr said:

3小时前 V _ kyr 说:

In that "Straight form prism.pdf" file the line and rect-curves strokes are always 1.4 px.

在“直线形式 Prism.pdf”文件中，直线和直线的笔画总是1.4像素。

In the "AD2.svg" file the clip-path transforms have other stroke sizes, everything else looks Ok stroke wise and has 1.44 px. And there aren't any strokes applied to the text portions there.

在“ AD2.svg”文件中，剪切路径转换有其他的笔画大小，其他的笔画看起来都很好，只有1.44像素。文本部分没有任何笔画。



If you import that "Straight form prism.pdf" file into ADe and export as SVG from inside of ADe, then the reviewed and generated SVG code looks Ok in terms of stroke-sizes etc. - You maybe better might export instead from that Graphpad app as PDF/SVG and then reimport that into ADe.

如果你将“笔画形式的 Prism.PDF”文件导入到 ADe 中，然后从 ADe 内部导出为 SVG，那么经过检查并生成的 SVG 代码在笔画大小等方面看起来没问题——也许你最好将 Graphpad 应用导出为 PDF/SVG，然后将其重新导入到 ADe 中。

In fact, I have been doing this all the time. However, compared with AI, I can copy and paste directly from Prism without making mistakes. This operation is really troublesome. I often need to make subtle adjustments in prism and then copy and paste them repeatedly into my ADe/AI. If I always need to export PDF first and then import to ADe, it is impossible for me to use it. May you have the plan to make it easier to copy and paste directly from Prism in the future?

[v_kyr]

8 hours ago, Starpugs said:

May you have they the plan to make it easier to copy and paste directly from Prism in the future?

Maybe, I can't tell how their agenda (todo list) looks like in terms of fixing SVG parser & generator, copy & paste between apps ... etc. looks like. - You can file in another bug report related to wrong SVG copy/paste handling, though AFAI recall there are already several in this regard.
