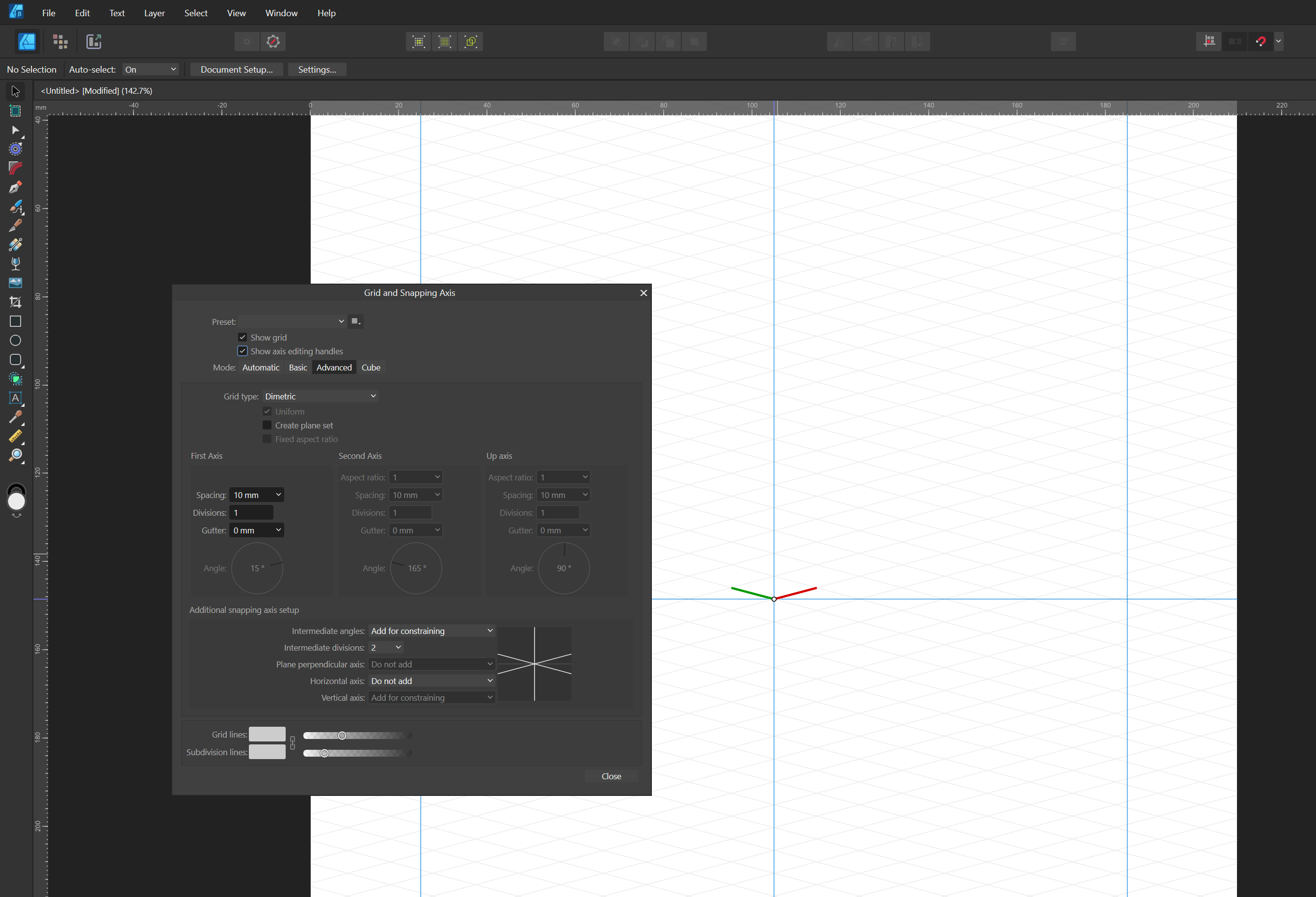

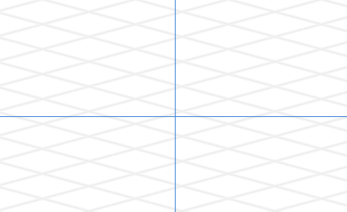

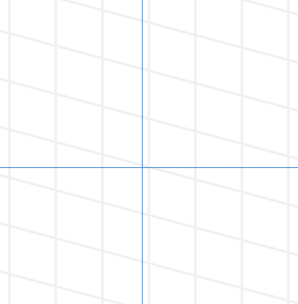

Outliers.ark Posted February 23, 2023 Posted February 23, 2023 Hi, All grids are off centred in all 3 planes front / side / top and create object placement issues when using snapping + grids. (dimetric grid used in screenshots) Issue is the same with artboard or not. Thank you everyone ❣️ Quote
PaulEC Posted February 23, 2023 Posted February 23, 2023 This may have nothing to do with this problem, (I don't use grids very often,) but I'm wondering if this is due to the grid origin, which seems to default to top left (rather than the centre). If the grid size doesn't fit the document size exactly, it won't be centred, but can be adjusted using the editing handles. Sean P 1 Quote Acer XC-895 : Windows 11 Home : Core i5-10400 Hexa-core 2.90 GHz : 32GB RAM : Intel UHD Graphics 630 – Affinity Publisher 2 : Affinity Photo 2 : Affinity Designer 2 : (latest release versions) – Also all apps on 12.9" (Second Generation) iPad Pro, OS Version 17.7.5 Old Lenovo laptop : Windows 10 - v1 and latest beta versions of all Affinity apps – Ancient Toshiba laptop: Vista - PagePlus X9, DrawPlus X8, PhotoPlus X8 etc
Staff Sean P Posted March 1, 2023 Staff Posted March 1, 2023 Hi Outliers.ark, This is By Design. By default the grid origin is placed in the top left of your document. However it can be moved by going into Grid and Snapping Axis and enabling 'Show axis editingn handles' and then snap that to the center of your page (or your guides wherever they may be). The guide will then originate from that point. Quote
