I have a bit of trouble exporting my layout. The layout contains qr-codes.

I have imported them as png (Only 2 Colors, black&white into affinity publisher and when I zoom in affinity I get clear edges (black/white) no matter how far i zoom in.




However, as soon as I export them as png for example the edges are getting washed out and therefor contain more colors then the previous two (black&white).


Since this qr Codes are for a print product I see problems with the end result because of this.

Is there any way I can export these in two colors(black&white) and preserve the details on the edges?

Any help is very much appreciated!

Link to comment
Share on other sites

Hi @Pbj

Which colour profile does the document have? And which colour profile do you use for export?

AMD Ryzen 7 5700x | INTEL Arc A770 | 32 GB DDR4 3200MHz | Windows 11 Pro (22621.1194)
Affinity Suite V2.0.4
Better translations with: https://www.deepl.com/translator
SVG preview in Windows Explorer with "SVG-See  Download SVG-See

"Life is one of the hardest"

Link to comment
Share on other sites

On top of all this, check, if pixel alignment is active. Otherwise your QR code might be placed on a fraction of a pixel, which causes anti aliasing on export.

»A designer's job is to improve the general quality of life. In fact, it's the only reason for our existence.«
Paul Rand (1914-1996)

Link to comment
Share on other sites

Thank you all for reaching in. With your help I managed to get clear edges.

However as soon as I try to export the layout in CMYK the black is getting a mixture of all colours and not CMYK(0,0,0,100). If I export it as RGB the black stays black. What could be the problem here?

Link to comment
Share on other sites

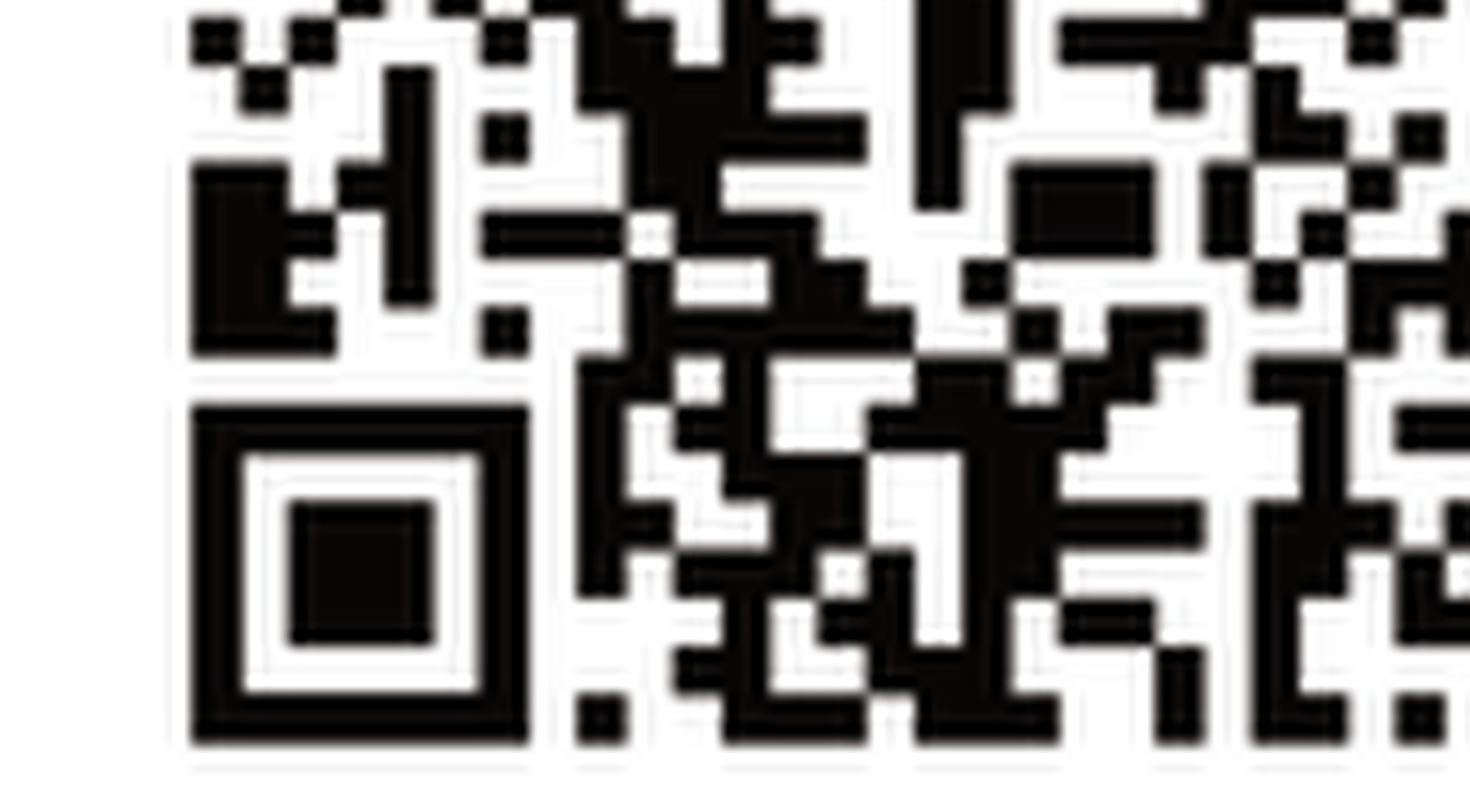

Image below shows part of your QR code magnified a bit
Top is original
Bottom, inverted, has curve applied, see attachment
Understand that I know 5/8 of not a lot about CMYK so if this is tripe I'm sorry


QRcodeCurve.afphoto

Microsoft Windows 10 Home, Intel i7-9750H CPU @ 2.60GHz, 16 GB RAM, 500GB SSD, 1TB Whirlygig, NVIDIA GeForce RTX 2060
Affinity Photo - 24/05/20, Affinity Publisher - 06/12/20, KTM Superduke - 27/09/10

Link to comment
Share on other sites

3 hours ago, Pbj said:

However as soon as I try to export the layout in CMYK the black is getting a mixture of all colours and not CMYK(0,0,0,100). If I export it as RGB the black stays black. What could be the problem here?

Document: CMYK/IsoCoated_v2_300

QR-Codes: RGB (Please press the "K only" button.)
