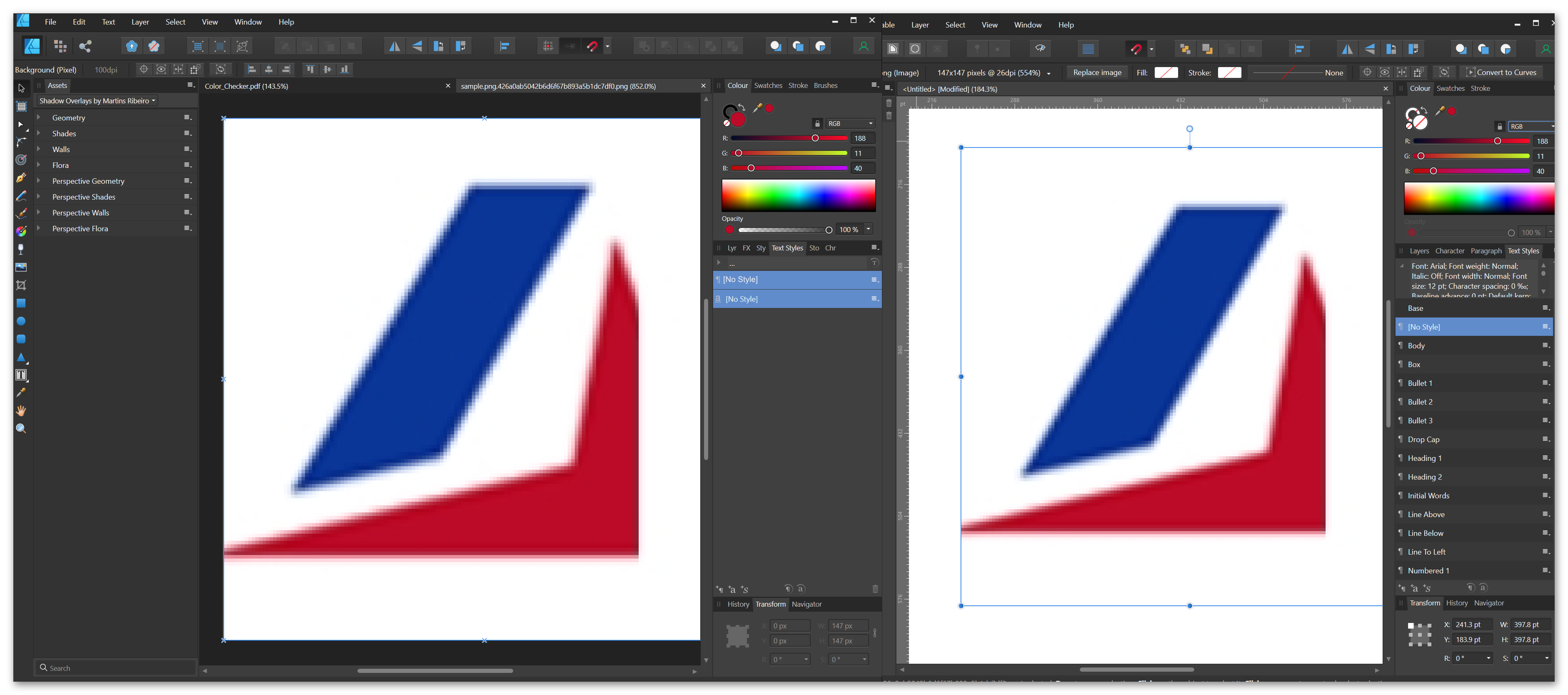

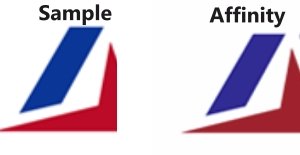

dbodonyi Posted May 29, 2022 Posted May 29, 2022 Hi, I couldn't find any solution to very serious issue I have constantly. Every time I need to make something based on example colors doesn't show true. I mostly use Affinity Publisher but have experienced same problem in Designer and Photo. In this example I had PNG image (sample) and have opened same image in Publisher (RGB/8 color format) I have tried every RGB profile available and it remains obviously different. What am I missing here? Even cheapest image preview software shows PNG sample file accurately in comparison. I didn't see much people complaining about it so I must be missing something obvious here. I use latest version of entire Affinity pack on Windows 10. Thanks in advance for any solution you can suggest me to solve this! Quote
Pšenda Posted May 29, 2022 Posted May 29, 2022 ICC profile for monitor in OS? Quote Affinity Store (MSI/EXE): Affinity Suite (ADe, APh, APu) 2.5.7.2948 (Retail) Dell OptiPlex 7060, i5-8500 3.00 GHz, 16 GB, Intel UHD Graphics 630, Dell P2417H 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Dell Latitude E5570, i5-6440HQ 2.60 GHz, 8 GB, Intel HD Graphics 530, 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Intel NUC5PGYH, Pentium N3700 2.40 GHz, 8 GB, Intel HD Graphics, EIZO EV2456 1920 x 1200, Windows 10 Pro, Version 21H1, Build 19043.2130.
dbodonyi Posted May 29, 2022 Author Posted May 29, 2022 Mind that I didn't have trouble in Adobe, MS Office or in any open source software (Krita, Inkscape etc.) Same OS, same setup. Only Affinity does this. Should I really mess with ICC profile in OS? Quote

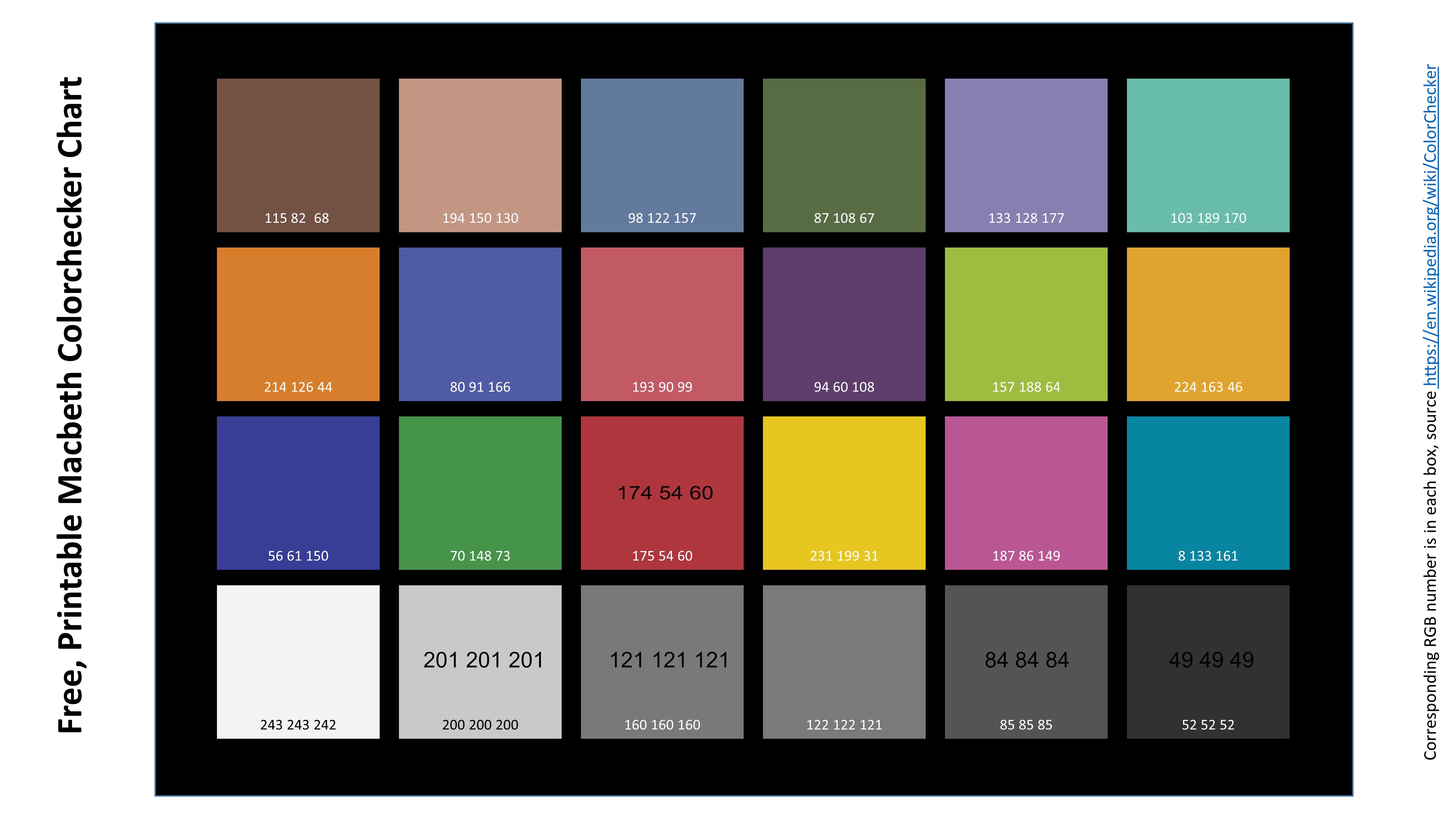

RichardMH Posted May 30, 2022 Posted May 30, 2022 Download a colour checker and see what you get using Info when you load it into A Photo? https://upload.wikimedia.org/wikipedia/commons/4/4f/Color_Checker.pdf Quote
dbodonyi Posted May 30, 2022 Author Posted May 30, 2022 5 hours ago, RichardMH said: Can you post the png? Sure, here it is Quote
dbodonyi Posted May 30, 2022 Author Posted May 30, 2022 ...and If I use color picker these fields are not the same. Similar to Anto's post problem is mostly in the last row. Quote
RichardMH Posted May 30, 2022 Posted May 30, 2022 I get it right if I'm in Adobe RGB (1998) in Preferences. Quote
Staff DWright Posted May 30, 2022 Staff Posted May 30, 2022 When I open your image in Designer and Publisher with the sRGB colour profile I am getting the same colour values in both of the programs, is it possible for you to post a copy of your .afpub file Quote

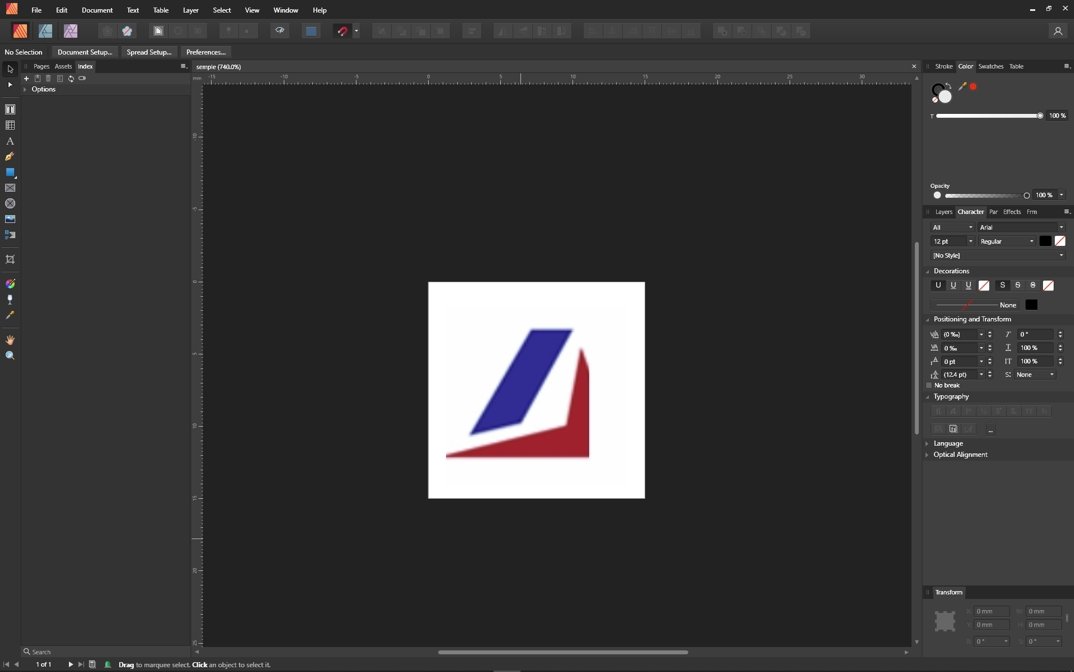

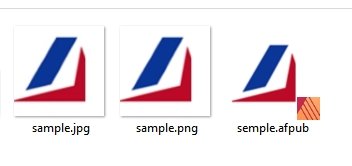

dbodonyi Posted May 30, 2022 Author Posted May 30, 2022 Sure, here is the afpub file. Interestingly, even in explorer it looks accurate as thumbnail and once opened it just changes from blue to some kind of purple... semple.afpub Quote
Komatös Posted May 30, 2022 Posted May 30, 2022 The publisher sets the color profile for me to the standard sRGB (IEC61966-2.1) profile. And to me, red looks like red. Quote MAC mini M4 | MacOS Sequoia 15.5 | 16 GB RAM | 256 GB SSD AMD Ryzen 7 5700X | Sapphire Nitro+ RX 9060 XT 16 GB | 32 GB DDR4 3200MHz | Windows 11 Pro 24H2 (26100.4351) Windows 11 Pro on VMWare Virtual Machine (on Mac) Affinity Suite V 2.6.3 & Beta 2.6 (latest) Interested in a free (selfhosted) PDF Solution? Have a look at Stirling PDF No backup, no pity.
Pšenda Posted May 30, 2022 Posted May 30, 2022 13 hours ago, dbodonyi said: Same OS, same setup. Unlike Affinity applications, which use the ICC profile for the monitor when rendering to the canvas, other applications do not have to use it. Quote Affinity Store (MSI/EXE): Affinity Suite (ADe, APh, APu) 2.5.7.2948 (Retail) Dell OptiPlex 7060, i5-8500 3.00 GHz, 16 GB, Intel UHD Graphics 630, Dell P2417H 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Dell Latitude E5570, i5-6440HQ 2.60 GHz, 8 GB, Intel HD Graphics 530, 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Intel NUC5PGYH, Pentium N3700 2.40 GHz, 8 GB, Intel HD Graphics, EIZO EV2456 1920 x 1200, Windows 10 Pro, Version 21H1, Build 19043.2130.
dbodonyi Posted May 30, 2022 Author Posted May 30, 2022 33 minutes ago, Pšenda said: Unlike Affinity applications, which use the ICC profile for the monitor when rendering to the canvas, other applications do not have to use it. Well, I'll be damned. I didn't knew this. I just removed default associated ICC display profile and it works like the charm, colors looks accurate in Affinity. Thanks very much for suggestion! And thanks everyone for fast response and will to help. This will make my life much more easier. Komatös and Pšenda 2 Quote
Pšenda Posted May 30, 2022 Posted May 30, 2022 You're welcome 🙂 Quote Affinity Store (MSI/EXE): Affinity Suite (ADe, APh, APu) 2.5.7.2948 (Retail) Dell OptiPlex 7060, i5-8500 3.00 GHz, 16 GB, Intel UHD Graphics 630, Dell P2417H 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Dell Latitude E5570, i5-6440HQ 2.60 GHz, 8 GB, Intel HD Graphics 530, 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Intel NUC5PGYH, Pentium N3700 2.40 GHz, 8 GB, Intel HD Graphics, EIZO EV2456 1920 x 1200, Windows 10 Pro, Version 21H1, Build 19043.2130.
