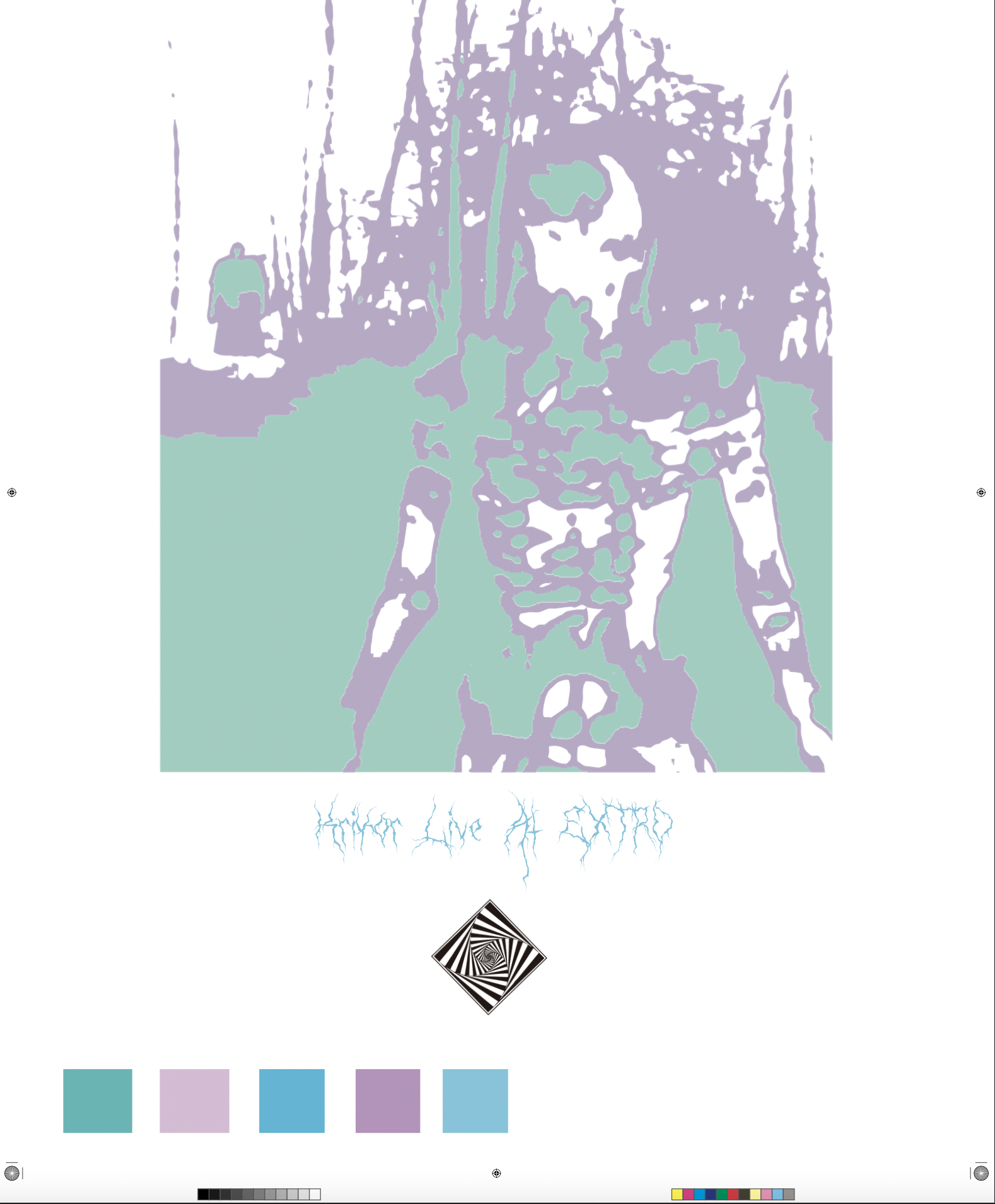

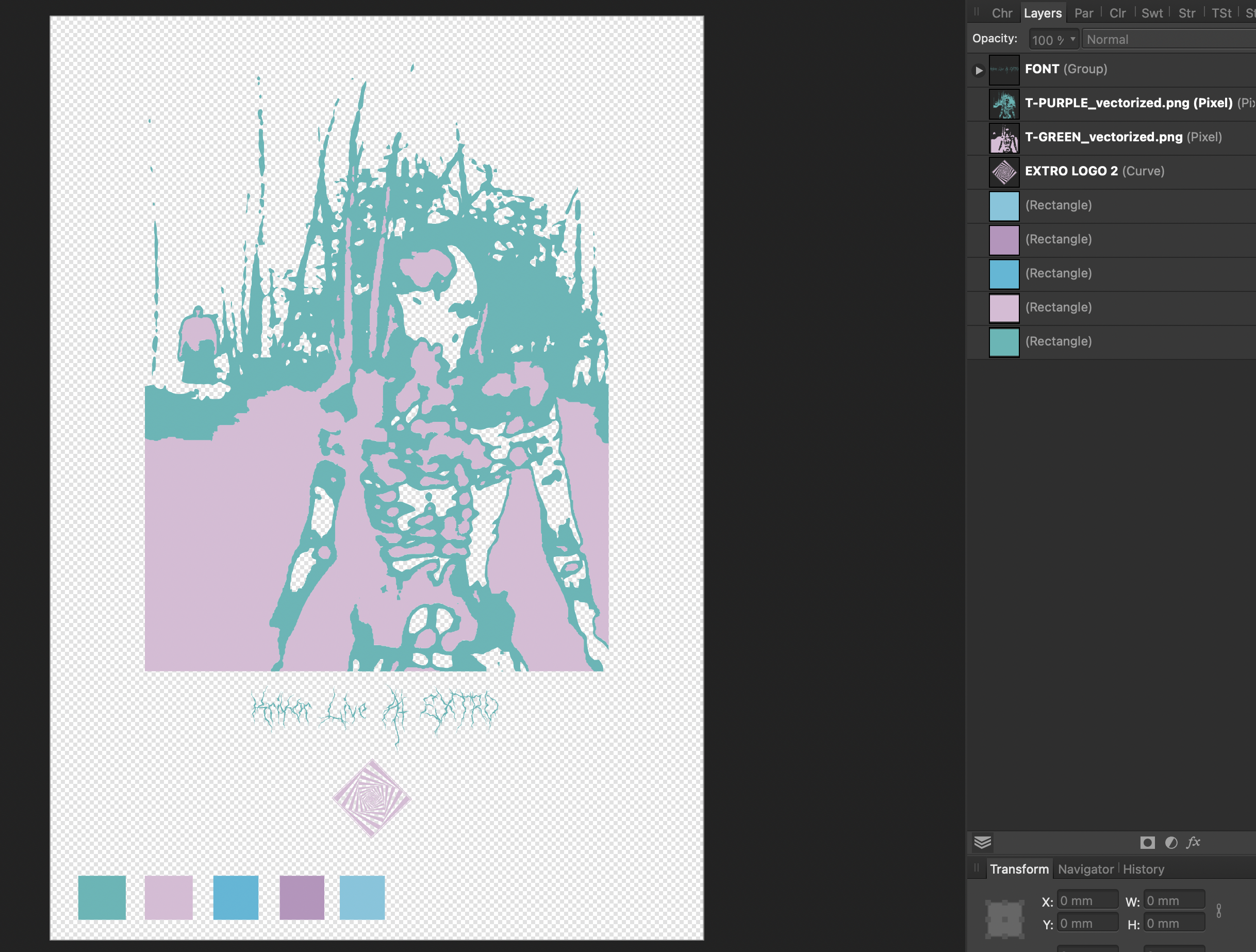

krikor Posted May 29, 2022 Share Posted May 29, 2022 Hi I'm having an issue trying to export a PDF for a t-shirt print, with layers and Pantone color indication. here are a few screen shots of the work, spot colors palette and export. The document is set as Japan CMYB but I only use spot colors. attached is the PDF export file. I don't understand what I'm doing wrong there. TSHIRT6-frontFinal6.pdf Quote Link to comment Share on other sites More sharing options...

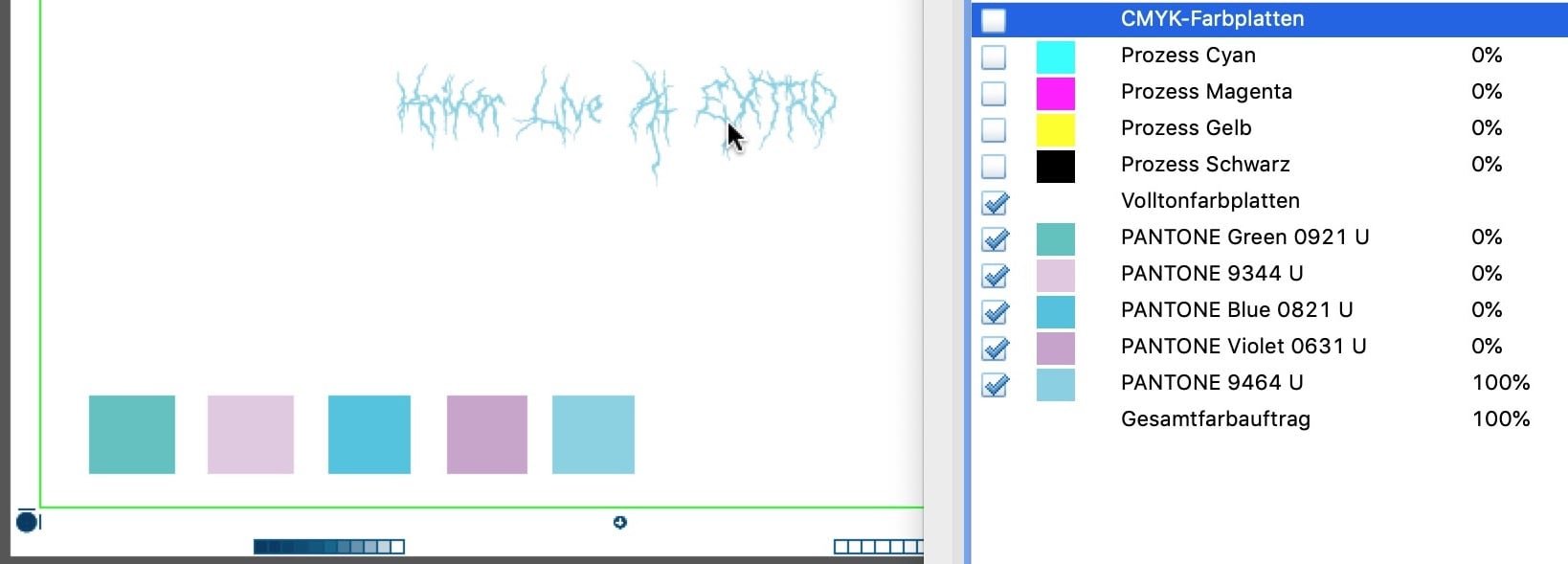

thomaso Posted May 29, 2022 Share Posted May 29, 2022 (edited) EDIT: no idea. Currently I am not able to create + export a pixel layer with spot color. Since your exported PDF shows spot colours for parts of the page I seems not to be a matter of export settings but rather that the CMYK parts don't have spot colours assigned. But no idea about the squared 'logo2' element which is RGB black in the PDF. – Can you upload your .afpub? Edited May 29, 2022 by thomaso misleading answer Quote macOS 10.14.6 | MacBookPro Retina 15" | Eizo 27" | Affinity V1 Link to comment Share on other sites More sharing options...
krikor Posted May 29, 2022 Author Share Posted May 29, 2022 here it is, thank you. TSHIRT6-frontFinal.afpub Quote Link to comment Share on other sites More sharing options...
krikor Posted May 29, 2022 Author Share Posted May 29, 2022 37 minutes ago, thomaso said: EDIT: no idea. Currently I am not able to create + export a pixel layer with spot color. Since your exported PDF shows spot colours for parts of the page I seems not to be a matter of export settings but rather that the CMYK parts don't have spot colours assigned. But no idea about the squared 'logo2' element which is RGB black in the PDF. – Can you upload your .afpub? where is the menu showing the Pantones? that is actually one thing I was looking for. Quote Link to comment Share on other sites More sharing options...
thomaso Posted May 29, 2022 Share Posted May 29, 2022 This was Acrobat. – You could open your PDF in Affinity (it will get converted). Quote macOS 10.14.6 | MacBookPro Retina 15" | Eizo 27" | Affinity V1 Link to comment Share on other sites More sharing options...
thomaso Posted May 29, 2022 Share Posted May 29, 2022 A workaround could be to use black grayscale image resources + apply spot fill colours. Or try this: Fill the pixels with black. Then choose menu Layer > Convert to Image Resource. This will allow you to assign a spot colour. (You also might check the "K only" button which can display a different result, depending on the initial pixel colours) See also @lacerto's recipe: Quote macOS 10.14.6 | MacBookPro Retina 15" | Eizo 27" | Affinity V1 Link to comment Share on other sites More sharing options...
krikor Posted May 30, 2022 Author Share Posted May 30, 2022 21 hours ago, thomaso said: A workaround could be to use black grayscale image resources + apply spot fill colours. Or try this: Fill the pixels with black. Then choose menu Layer > Convert to Image Resource. This will allow you to assign a spot colour. (You also might check the "K only" button which can display a different result, depending on the initial pixel colours) See also @lacerto's recipe: thanks this helped me a lot, turning everything into image ressources tiff grayscale 8bit did it. I'm used to bitmap in indesign, I was thinking the same way, now it is all good thomaso 1 Quote Link to comment Share on other sites More sharing options...
