Ken Hjulstrom Posted May 8, 2022 Posted May 8, 2022 Hi, In Publisher, is it possible to lock the size and position of text frames on a page while still having the text contained in that frame being editable? I'm aware that I can use master pages to do this, but not all of the text frames that I use have a standard position on a page, and while I'm editing text, I sometimes accidentally move the frame slightly, and if I don't notice this right away when I can use "undo", it's a bit of a bother to resize/reposition the frame to its precise intended size/location. If I lock the frame, this appears to prevent my ability to edit or view attributes of the contained text, which is something that I often need to do. Thanks! Ken Graham_Charles 1 Quote
walt.farrell Posted May 8, 2022 Posted May 8, 2022 22 minutes ago, Ken Hjulstrom said: but not all of the text frames that I use have a standard position on a page If you use a Master Page, and need to move or resize the text frame it provided, you can select the Master Page's layer in the Layers panel and use Edit Detached. Then click Finished when you're done editing the frame. If most of your frames do use the standard size/placement perhaps that will provide what you need. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. Laptop 2: Windows 11 Pro 24H2, 16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU iPad: iPad Pro M1, 12.9": iPadOS 18.5, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.5
Ken Hjulstrom Posted May 8, 2022 Author Posted May 8, 2022 7 minutes ago, walt.farrell said: If you use a Master Page, and need to move or resize the text frame it provided, you can select the Master Page's layer in the Layers panel and use Edit Detached. Then click Finished when you're done editing the frame. If most of your frames do use the standard size/placement perhaps that will provide what you need. Thanks, this is the implementation I had used previously, when the text frame were more consistent. If I use Edit Detached to alter a text frame from its base specification in the master and then click Finished, will I have any better protection from accidental relocation or resizing that's better than just having a non-master-based frame? Thanks. Quote
Old Bruce Posted May 8, 2022 Posted May 8, 2022 35 minutes ago, Ken Hjulstrom said: If I use Edit Detached to alter a text frame from its base specification in the master and then click Finished, will I have any better protection from accidental relocation or resizing that's better than just having a non-master-based frame? Your new position on the Actual Page will be locked as it is still locked (on the Master page so to speak) even though it has an edited. size and location. Quote Mac Pro (Late 2013) Mac OS 12.7.6 Affinity Designer 2.6.0 | Affinity Photo 2.6.0 | Affinity Publisher 2.6.0 | Beta versions as they appear. I have never mastered color management, period, so I cannot help with that.

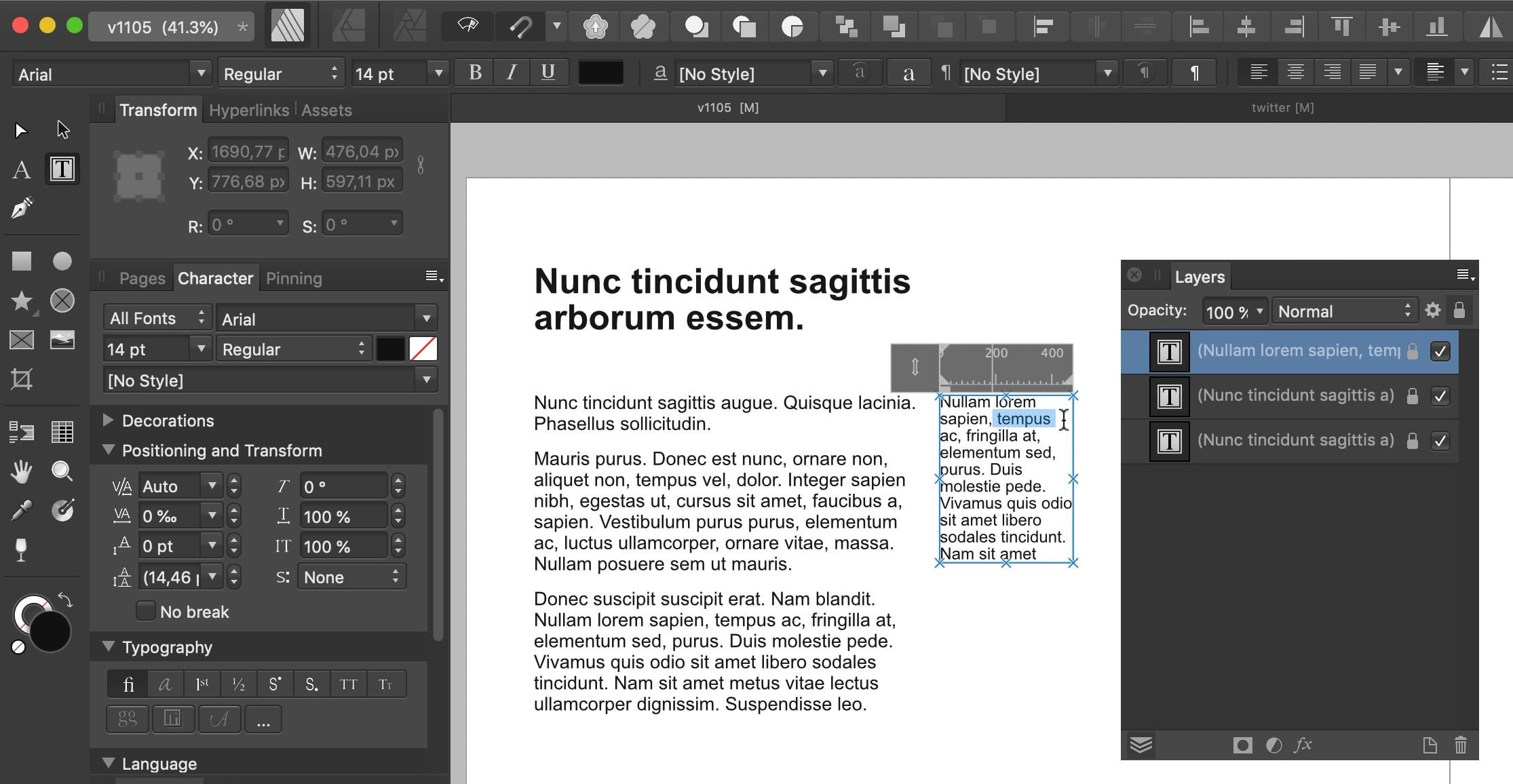

thomaso Posted May 8, 2022 Posted May 8, 2022 1 hour ago, Ken Hjulstrom said: while I'm editing text, I sometimes accidentally move the frame slightly If it's about your own discipline: Why not simply lock the frame in the Layers panel? Such a locked text frame can still be selected in the Layers panel and its contents fully edited and styled with the Text tool. But – like master page objects – it can't get altered in its frame dimension, position etc., and – different to master page objects – can get unlocked with a simple click on the lock icon. No need for the detach + finish procedure. Quote • MacBookPro Retina 15" | macOS 10.14.6 | Eizo 27" | Affinity V1 • iPad 10.Gen. | iOS 18.5. | Affinity V2.6
Ken Hjulstrom Posted May 8, 2022 Author Posted May 8, 2022 35 minutes ago, thomaso said: If it's about your own discipline: Why not simply lock the frame in the Layers panel? Such a locked text frame can still be selected in the Layers panel and its contents fully edited and styled with the Text tool. But – like master page objects – it can't get altered in its frame dimension, position etc., and – different to master page objects – can get unlocked with a simple click on the lock icon. No need for the detach + finish procedure. This was what I had planned to do all along, but I've been finding that with the text frame locked, I'm unable to edit the text. The document I'm working on is a two-column magazine, where articles will be multiple pages long, so I have sequences of column-shaped text frame linked together. Could the linking have something to do with my troubles editing the text in these frames if they are locked? Quote
Old Bruce Posted May 8, 2022 Posted May 8, 2022 8 minutes ago, Ken Hjulstrom said: Could the linking have something to do with my troubles editing the text in these frames if they are locked? No. Quote Mac Pro (Late 2013) Mac OS 12.7.6 Affinity Designer 2.6.0 | Affinity Photo 2.6.0 | Affinity Publisher 2.6.0 | Beta versions as they appear. I have never mastered color management, period, so I cannot help with that.

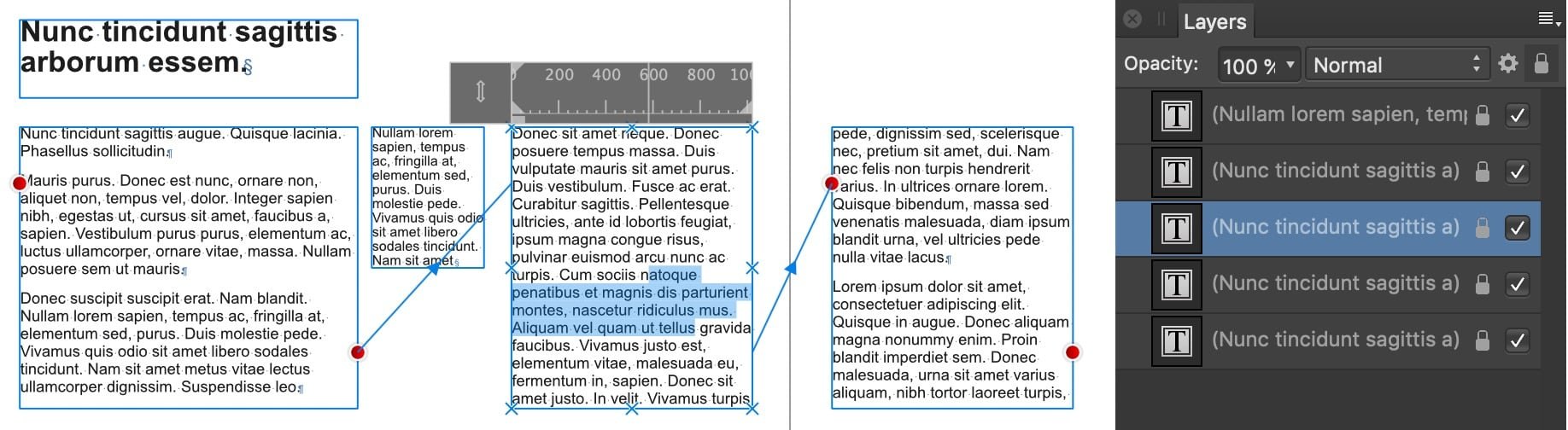

thomaso Posted May 8, 2022 Posted May 8, 2022 11 minutes ago, Ken Hjulstrom said: Could the linking have something to do with my troubles editing the text in these frames if they are locked? No. It works the same way. Once you got a frame in a chain selected you also can edit its content – and actually even all linked frames in the chain, too, without the need to select them separately, for instance by moving the text cursor with keyboard shortcuts and its arrow keys. Quote • MacBookPro Retina 15" | macOS 10.14.6 | Eizo 27" | Affinity V1 • iPad 10.Gen. | iOS 18.5. | Affinity V2.6
R C-R Posted May 8, 2022 Posted May 8, 2022 29 minutes ago, Ken Hjulstrom said: This was what I had planned to do all along, but I've been finding that with the text frame locked, I'm unable to edit the text. It should work if you have either the Frame Text or Artistic Text tool selected in the Tools panel & in the Layers panel you have the locked text frame selected. If you have another tool selected it won't work. Quote All 3 1.10.8, & all 3 V2.6 Mac apps; 2020 iMac 27"; 3.8GHz i7, Radeon Pro 5700, 32GB RAM; macOS 10.15.7 All 3 V2 apps for iPad; 6th Generation iPad 32 GB; Apple Pencil; iPadOS 15.7
Ken Hjulstrom Posted May 9, 2022 Author Posted May 9, 2022 4 hours ago, R C-R said: It should work if you have either the Frame Text or Artistic Text tool selected in the Tools panel & in the Layers panel you have the locked text frame selected. If you have another tool selected it won't work. Thanks, it's possible that I had been trying to select the locked frame by clicking on it with the Move tool. For locked layers, is the only way to select them is by clicking on the layer in the Layers panel, and that it's not possible to select them by clicking on them in the document, no matter which tool is active? Quote
R C-R Posted May 9, 2022 Posted May 9, 2022 2 minutes ago, Ken Hjulstrom said: For locked layers, is the only way to select them is by clicking on the layer in the Layers panel... Yes. Ken Hjulstrom 1 Quote All 3 1.10.8, & all 3 V2.6 Mac apps; 2020 iMac 27"; 3.8GHz i7, Radeon Pro 5700, 32GB RAM; macOS 10.15.7 All 3 V2 apps for iPad; 6th Generation iPad 32 GB; Apple Pencil; iPadOS 15.7
