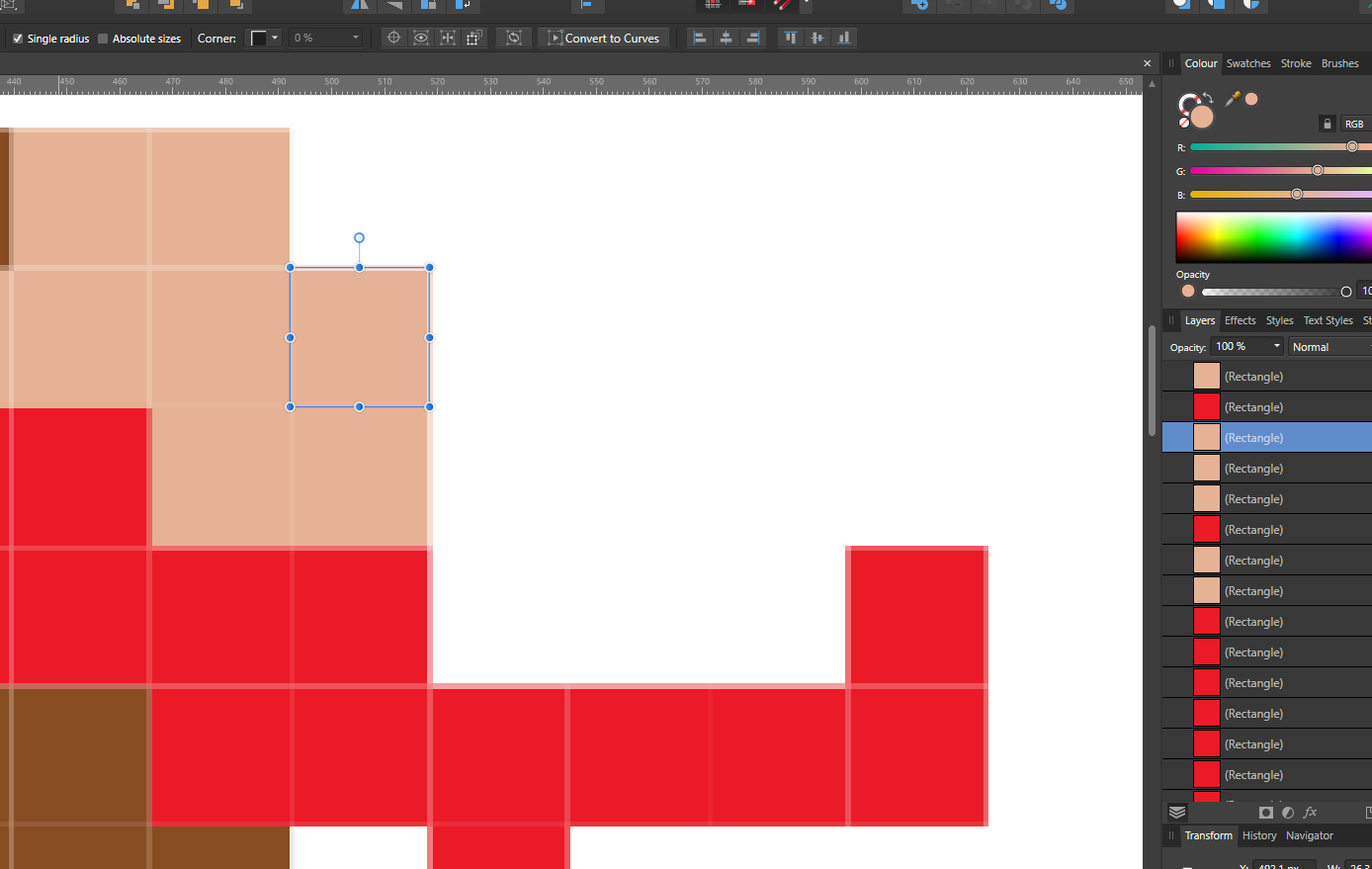

Hamster Posted April 15, 2022 Posted April 15, 2022 Hi there, Sorry if this is a stupid question, but does anybody know how to remove shape outlines? I can't for the life of me find how to remove it! Many thanks in advance! Tom Quote
Pšenda Posted April 15, 2022 Posted April 15, 2022 4 minutes ago, Hamster said: remove shape outlines It's really "outlines", or only pixel imperfect? See Transform panel, and check shape size and position (must be whole pixels). P. S. Stroke color is setting to None, then I tip problem with pixel alignment. Try set Snapping - Force pixel alignment to on, Move by whole to off. Hamster 1 Quote Affinity Store (MSI/EXE): Affinity Suite (ADe, APh, APu) 2.5.7.2948 (Retail) Dell OptiPlex 7060, i5-8500 3.00 GHz, 16 GB, Intel UHD Graphics 630, Dell P2417H 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Dell Latitude E5570, i5-6440HQ 2.60 GHz, 8 GB, Intel HD Graphics 530, 1920 x 1080, Windows 11 Pro, Version 24H2, Build 26100.2605. Intel NUC5PGYH, Pentium N3700 2.40 GHz, 8 GB, Intel HD Graphics, EIZO EV2456 1920 x 1200, Windows 10 Pro, Version 21H1, Build 19043.2130.
Old Bruce Posted April 15, 2022 Posted April 15, 2022 I can tell from the little bit of the transform panel that is visible you have fractional pixel location for the x co-ordinate. That is your problem. Hamster 1 Quote Mac Pro (Late 2013) Mac OS 12.7.6 Affinity Designer 2.6.0 | Affinity Photo 2.6.0 | Affinity Publisher 2.6.0 | Beta versions as they appear. I have never mastered color management, period, so I cannot help with that.
Hamster Posted April 15, 2022 Author Posted April 15, 2022 Thanks both! Both correct that it was a fractional pixel issue and as soon as I changed them to integers there were no outlines on export. Thanks again, Tom Quote
