Paul Mc Posted March 10, 2022 Posted March 10, 2022 I've been given a print-ready PDF as a starting point for an update. Can I assume that if spot colours were used in the original document that they will appears as spot colours after importing to Designer? Quote
joe_l Posted March 10, 2022 Posted March 10, 2022 The elements have the correct spot colours applied, but the spot colours appear nowhere. Create Palette from Document won't help you here. Clicking a spot colour element and adding as global colour adds a spot colour to the Swatches panel, but this won't help you any further. Handling spot colours (or colours in general) is not very satisfying in the Affinities IMO. Markus Plutonika and Paul Mc 2 Quote ---------- Windows 10 / 11, Complete Suite Retail and Beta
Paul Mc Posted March 10, 2022 Author Posted March 10, 2022 That's what I was worried about! I no longer have access to Acrobat to see separations where this would be obvious. I have copy which I would have expected to be spot but it appears as process which makes me think there may be other elements lurking which will print poorly compared to the previous version. Quote
walt.farrell Posted March 10, 2022 Posted March 10, 2022 46 minutes ago, Paul Mc said: after importing to Designer? By "importing" do you mean File > Place or File > Open? I ask because it makes a difference in some cases, though I don't know if it will in this one. Quote -- Walt Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases PC: Desktop: Windows 11 Pro 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090 Laptop: Windows 11 Pro 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU. Laptop 2: Windows 11 Pro 24H2, 16GB memory, Snapdragon(R) X Elite - X1E80100 - Qualcomm(R) Oryon(TM) 12 Core CPU 4.01 GHz, Qualcomm(R) Adreno(TM) X1-85 GPU iPad: iPad Pro M1, 12.9": iPadOS 18.3.1, Apple Pencil 2, Magic Keyboard Mac: 2023 M2 MacBook Air 15", 16GB memory, macOS Sequoia 15.0.1
Paul Mc Posted March 10, 2022 Author Posted March 10, 2022 Hi @walt.farrell sorry, I should have mentioned that I was using File | Open The full story is that I've been given a print PDF to update and I'm worried that the way that Designer imports the data means that some important aspects of it are lost. This would be less of a problem in my case if I could detect the spot colours and recreate them but even that doesn't appear to be an option. Place and passthrough might have been an option if I didn't need to modify the content. walt.farrell 1 Quote
joe_l Posted March 11, 2022 Posted March 11, 2022 It might help using the Designer Persona (if available) and the "Select same Fill" feature on an element that is surely spot and replacing with a spot colour from your Swatches panel. But this can give you other problems, which I am going to report soon. Quote ---------- Windows 10 / 11, Complete Suite Retail and Beta
Paul Mc Posted March 11, 2022 Author Posted March 11, 2022 Hi @joe_l Yes, the Select same ... feature is likely to be useful in reconstructing any spot colour assignments. I'm curious about what other problems you've encountered might be. The only enhancement that I'd like to see is for the Select same ... to allow for a Sub-select same ... At the moment if I have grey text on one artboard and do a Select same fill it selects all the grey text across all the artboards. It would be good if I could select same from a layer, group or an already selected set of objects. Quote
joe_l Posted March 11, 2022 Posted March 11, 2022 7 minutes ago, Paul Mc said: I'm curious about what other problems you've encountered might be. Quote ---------- Windows 10 / 11, Complete Suite Retail and Beta

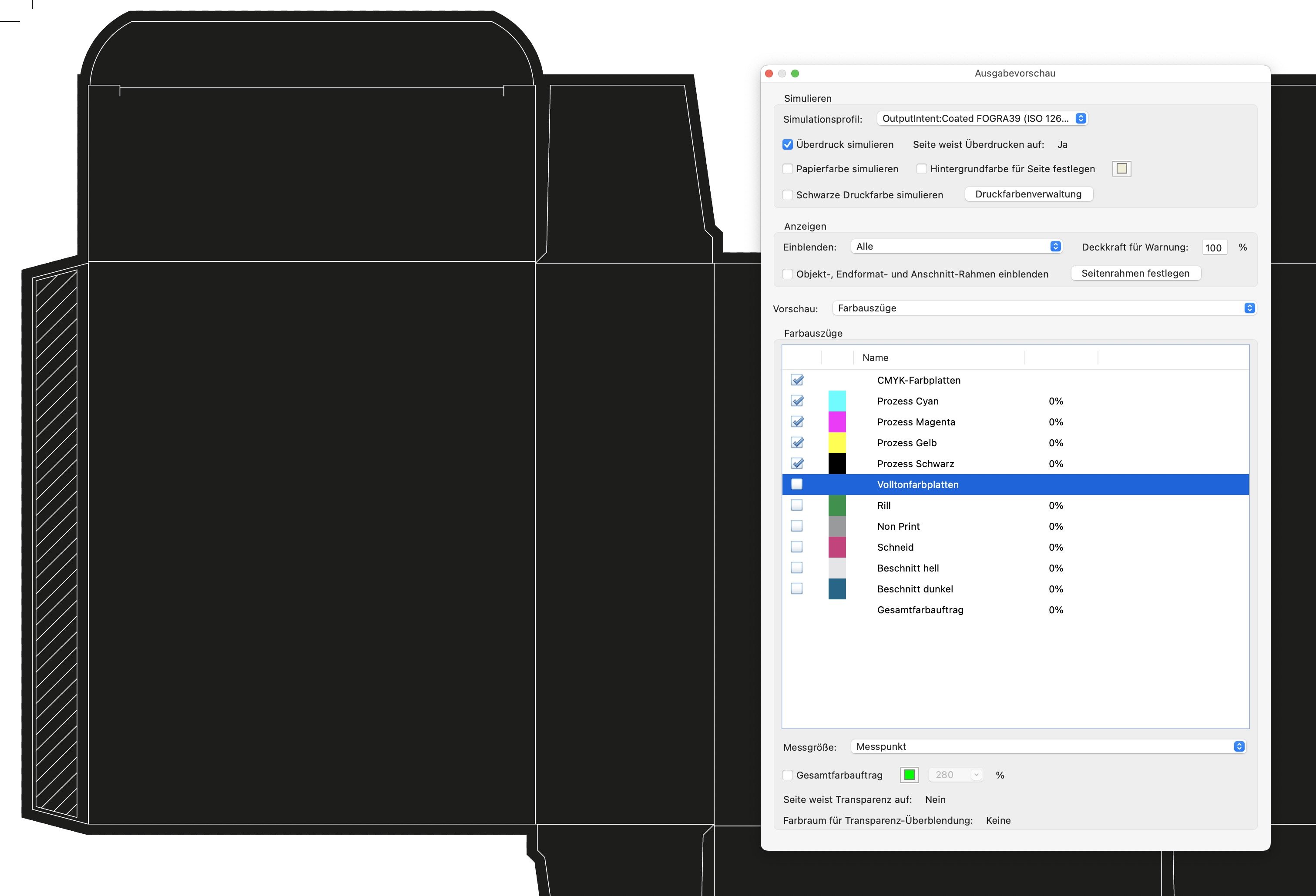

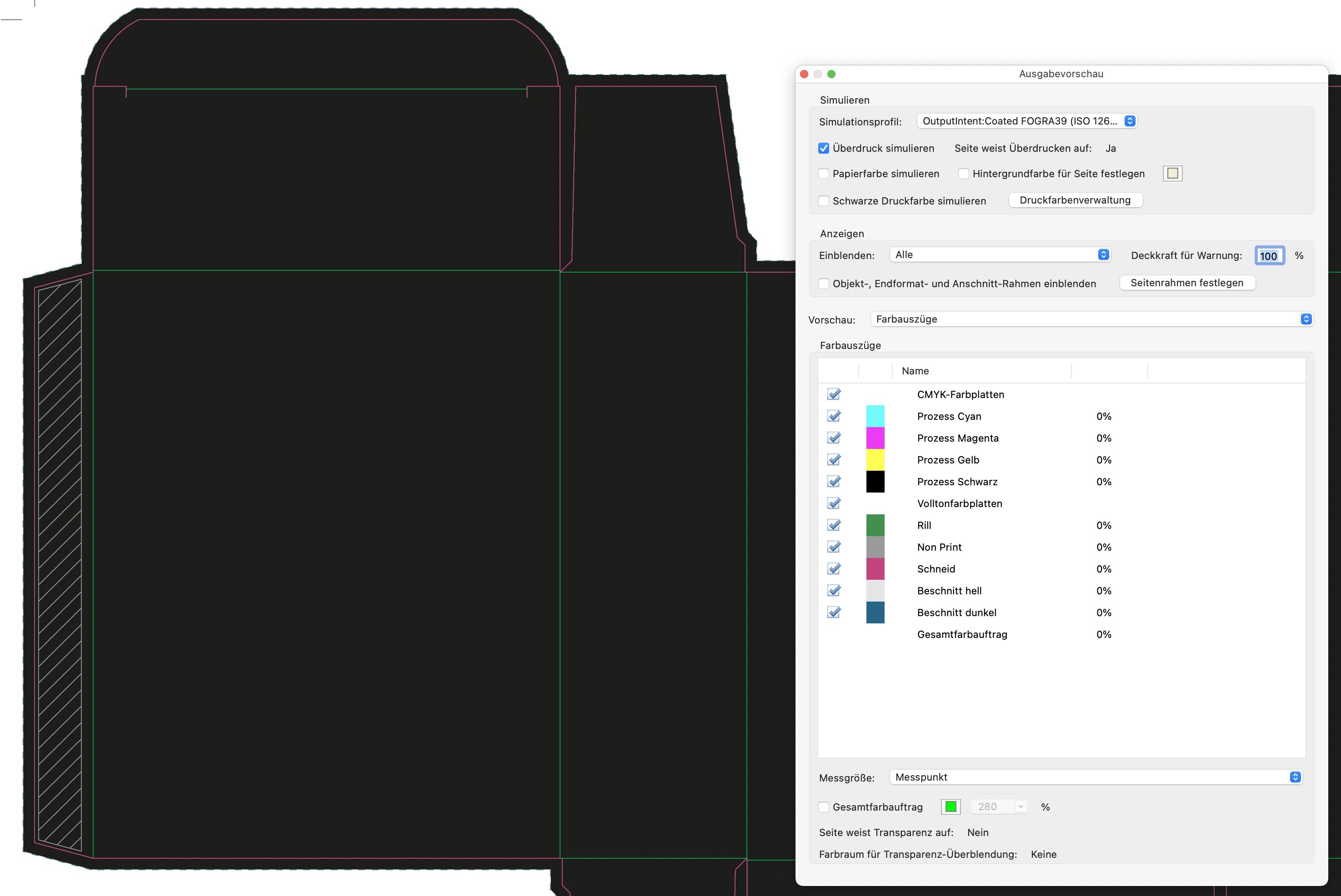

3joern Posted January 24 Posted January 24 Any News about this Spot colour issue? @Callum, @Lee D? I have a print template for packaging with cut and fold contours defined in spot colors. When I import the PDF into Affinity Designer, the spot colors don't appear in the Swatches panel. While this isn't ideal, it's manageable during the design phase. However, after exporting the print PDF (X-3:2003) and checking it in Acrobat, I noticed an issue. In Acrobat's separation preview, when I turn off the spot color layer, the spot colors are cut out of the background color. The spot color contours should instead be set to overprint so the print house can hide the lines as needed. I read in the documentation that I can adjust the overprint settings for spot colors in the Swatches panel. However, if the spot colors don't appear there (wired that Acrobat have), it becomes a significant problem. Attached you can find the Affinity Designer Dok and the print PDF, also the Acrobat Screenshots. Hope you have a Solution, because for a professional work I need professional Tools. test.afdesign test_PRINT.pdf Quote
joe_l Posted January 24 Posted January 24 12 minutes ago, 3joern said: Hope you have a Solution, because for a professional work I need professional Tools. Not a real solution, because is not solved yet. a) Make your own Document palette b) Click an element using a spot colour c) Add it as Global Colour to your palette d) Rightclick the colour and set it to overprint e) Assign the Global Colour to the element again f) Repeat this for all colours Not a convenient way or I missed a step. Quote ---------- Windows 10 / 11, Complete Suite Retail and Beta
3joern Posted January 24 Posted January 24 Thanks, these are the steps I would have taken if nothing else worked. But then I could also have used Illustrator. I used Affinity Designer often because the time saving, but in this case the advantage is gone. Quote
