How to join these two curves on all points

[Michael Swengel]

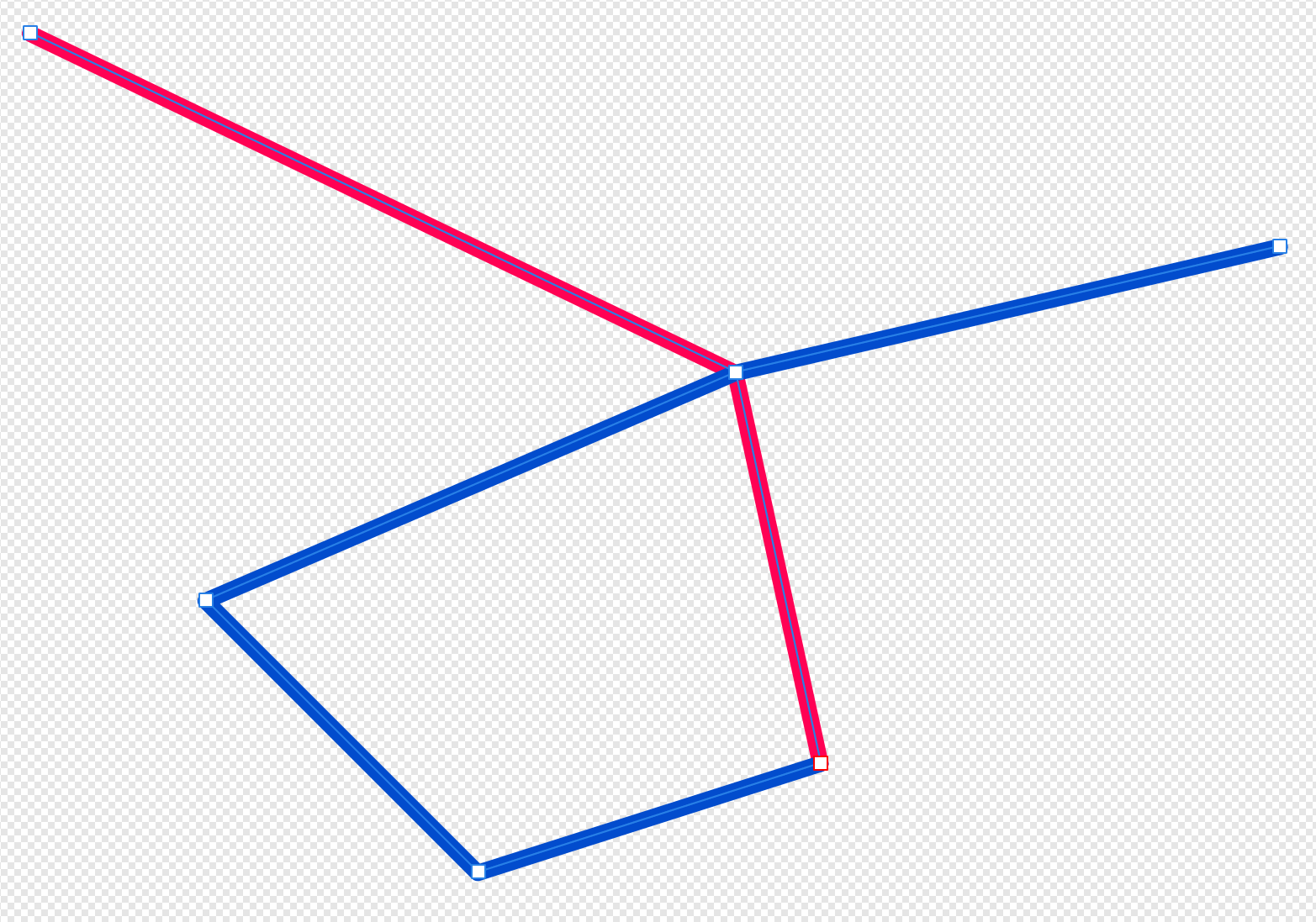

These curves intersect at two points. How can I merge them so that the points at both intersections are actually joined?

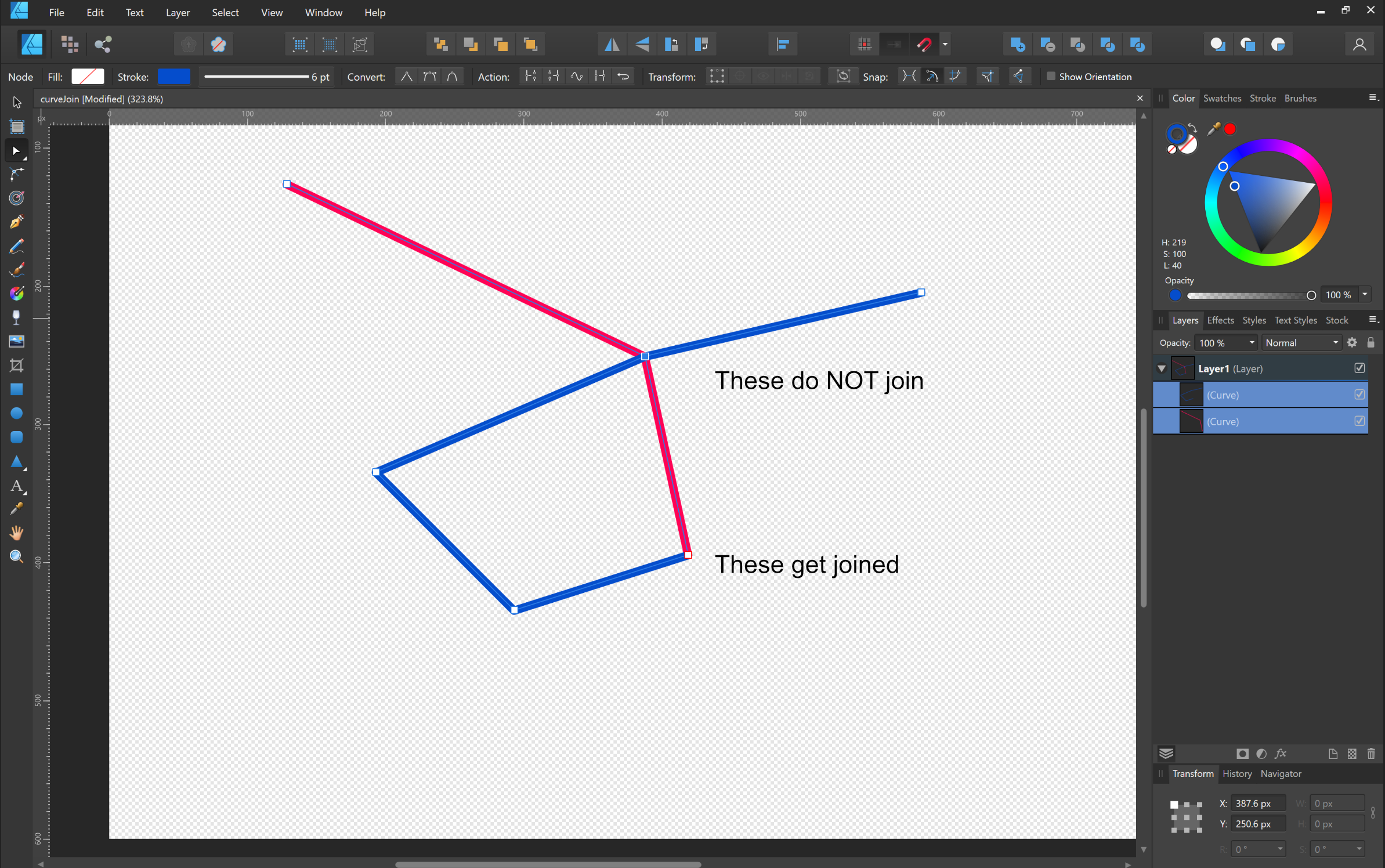

If I use "Join Curves" the lower intersection is merged into one point, but the upper is not.

curveJoin.afdesign

[Pšenda]

Affinity don't use branches and multiple joined curve.

[PixelPest]

This is practically none existent in the SVG world. And I´m not sure what you expect from it.

[R C-R]

9 hours ago, Pšenda said:

Affinity don't use branches and multiple joined curve.

IOW, a node on a curve can connect no more than two curve segments.

[Michael Swengel]

On 9/24/2021 at 7:14 AM, PixelPest said:

This is practically none existent in the SVG world. And I´m not sure what you expect from it.

That seems silly. I’d like to be able to fill in the closed in area. But I would have to do so manually or re-draw the lines to make that happen? That seems odd.

[Alfred]

41 minutes ago, Michael Swengel said:

I’d like to be able to fill in the closed in area. But I would have to do so manually or re-draw the lines to make that happen?

No, you don’t have to manually redraw anything. Just follow these steps:

1. Copy both lines to the clipboard.

2. Join the two lines and fill the result:

3. Delete the two end nodes:

4. Paste the copied lines on top:



[R C-R]

59 minutes ago, Michael Swengel said:

That seems silly.

Seemingly silly or not, it has been a standard for a very long time. There is an alternative approach that permits more than two segments connecting to a single node but it has not generated much interest, & almost no apps support it.

[PixelPest]

3 hours ago, Michael Swengel said:

But I would have to do so manually or re-draw the lines to make that happen? That seems odd.

No need for that. Not sure you need 2 colored strokes - if not just break it at the crossing point. If yes add a 2 segment stroke above - maybe.



[Michael Swengel]

3 hours ago, R C-R said:

Seemingly silly or not, it has been a standard for a very long time. There is an alternative approach that permits more than two segments connecting to a single node but it has not generated much interest, & almost no apps support it.

No doubt. It just seems very odd to me. I don’t understand why I can’t tell the program that I want those two nodes to be one.


I’m (relatively) new to vector design, so I don’t doubt what you’re saying. It just seems to me like it could be a lot more intuitive.

Edited September 25, 2021 by Michael Swengel
Typo. :)
