UHD 620 & OpenCL? v1.92=good, v1.10=bad

[PeteMacca]

Hey devs..., ever since AP introduced Hardware Acceleration, I've been able to run HA + Photo v1.92 without a problem on my integrated CPU/GPU. But it crashes at the slightest chance with v1.10 when HA is enabled.

For example:

• Open a 2 MB jpg >> add Brightness/Contrast adjustment >> move slider >> crash.
• Open a 2 MB jpg >> draw a shape with any of the Marquee Tools >> drag shape into position >> crash.

And yes, I have the latest graphics driver from Intel.

• OS Name:  Microsoft Windows 10 Home
• Version:  10.0.19043 Build 19043 (21H1)
• Processor:  Intel(R) Core(TM) i7-10510U CPU @ 1.80GHz
• Installed Physical Memory (RAM):  16.00 GB
• Adapter Description:  Intel(R) UHD Graphics 620
• Adapter RAM:  1.00 GB
• Driver Version:  30.0.100.9805
• Driver Date:  23/07/2021

So I've rolled back to v1.92, enabled HA, and will wait for Affinity to work out kinks.

[RichardMH]

Might help them if you put up the crash reports. Should be in



%APPDATA%\Affinity\Photo\1.0\CrashReports

[PeteMacca]

2 hours ago, RichardMH said:

Might help them if you put up the crash reports. Should be in

%APPDATA%\Affinity\Photo\1.0\CrashReports

Thanks for the reminder...

2c04aefe-130e-4b70-9e68-33eb32e02d89.dmp

[Chris B]

Hey PeteMacca,

Unfortunately I can't see anything useful in that crash report.

Can you try installing the beta and see if that crashes and then attach a new crash report? This beta is older than the retail 1.10 but it might give me some additional info in a crash report.



[PeteMacca]

Hey Chris B,

This is getting a little weird. I ran beta 1.10..., and it didn't crash. I thought it was going to crash, because it showed the same weird effect with the sliders that retail 1.10 showed just prior to crashing. But beta 1.10 didn't crash.

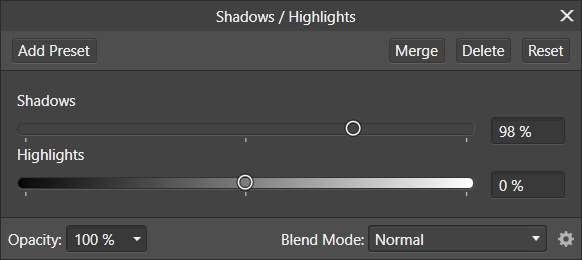

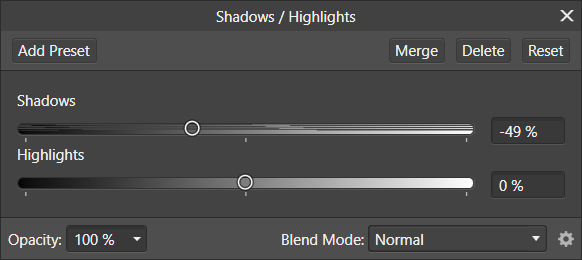

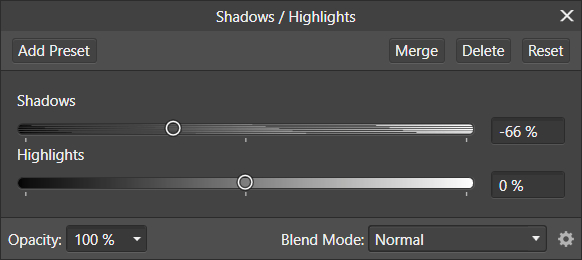

Here's what beta's slider looks like...



[Chris B]

I haven't seen that before but I have seen 3rd party apps cause glitches in the Preferences dialog - can you check this list to see if you have any of them installed:



Specifically Nahemic...

[PeteMacca]

11 hours ago, Chris B said:

I haven't seen that before but I have seen 3rd party apps cause glitches in the Preferences dialog - can you check this list to see if you have any of them installed:

Specifically Nahemic...

No third party software or services found. My system is a Lenovo Yoga.

Edited August 20, 2021 by PeteMacca
fix a typo

[Chris B]

Thanks for confirming. I'm going to check with some colleagues - I assume OpenCL is on?

[PeteMacca]

Yes, OpenCL is on with beta 1.10.

[PeteMacca]

I rolled back the Intel graphics driver, from 30.someting to 27.something, and it has fixed the glitchy sliders of beta 1.10 with OpenCL, and (so far) no crashes either.

I will continue to test it, and retry with retail 1.10.

[PeteMacca]

More confusing results (at least to me).

I re-installed retail 1.10, OpenCL set to on, and the older 27.something GPU driver.

• It DID crash while dragging a shape drawn by the Marquee Tool. Unfortunately, no crash report was generated.
• It DIDN'T crash while adjusting the Brightness/Contrast slider, but the slider did briefly get glitchy, then behaved normally.

Meanwhile..., with beta 1.10, OpenCL set to on, and the older 27.something GPU driver, everything is going along really well (no crash, no glitchy sliders).

[Chris B]

Thanks for the update.

I disabled my dGPU on my personal machine and installed the newest driver and could not see the glitchy slider and this was in the retail build. I'll try the older driver as well.

I'd be interested to know if that glitchy slider happens every time for you.

[PeteMacca]

Hi @Chris B, I have just tried the latest retail (1.10.1.1142) with OpenCL enabled, and the older Intel UHD 620 driver, version 27.xxx. The good news was that the sliders behaved normally. The bad news was that the marquee tool caused a crash while dragging the shape. No crash file was created, but I recorded a brief video of when things went bad.



[PeteMacca]

After having trouble with the latest retail version (1.10.1.1142) and OpenCL, I reinstalled the last stable version for me (1.9.2) that played nice with OpenCL. But it crashed as well when using the Patch tool.

So it turns out that 1.9.2 wasn't stable for me after all. It just took me longer to stumble across something to break it.

Now I'm back with 1.10.1.1142 and OpenCL is turned OFF..., and life is starting to look a little better.
