Searcher1851 Posted May 9, 2021 Share Posted May 9, 2021 Is it possible to draw a line with a fixed length? I want to draw a line of 53mm in length, then another of (say) 65mm in length. I am using the pen tool, and have seen the "dimension" indicators as the line is drawn, but they vanish very quickly. I have searched for tutorials on the subject, but they all say, "click the pen tool where you want to start and again to finish the line". Not much help at all. I use a CAD programme at the moment, but it cannot deal with gradients and transferring the lines from CAD to Designer has proved problematical. Quote Link to comment Share on other sites More sharing options...

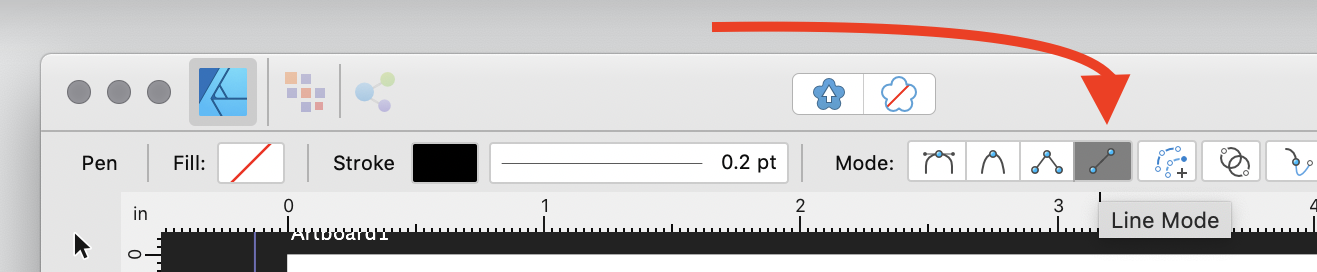

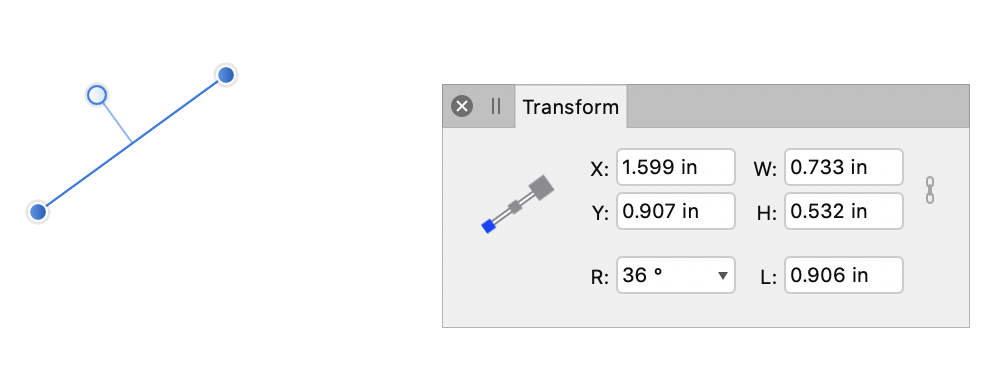

Old Bruce Posted May 9, 2021 Share Posted May 9, 2021 20 minutes ago, Searcher1851 said: Is it possible to draw a line with a fixed length? I want to draw a line of 53mm in length, then another of (say) 65mm in length. Yes it is possible so long as the lines are straight lines, no curve in it. There is a single line function for the pen tool. Then you have to use the move tool and the Transform panel to select the lines you drew and check / correct the lengths in the Transform panel. Quote Mac Pro (Late 2013) Mac OS 12.7.4 Affinity Designer 2.4.1 | Affinity Photo 2.4.1 | Affinity Publisher 2.4.1 | Beta versions as they appear. I have never mastered color management, period, so I cannot help with that. Link to comment Share on other sites More sharing options...
Searcher1851 Posted May 9, 2021 Author Share Posted May 9, 2021 15 minutes ago, Old Bruce said: Yes it is possible so long as the lines are straight lines, no curve in it. There is a single line function for the pen tool. Then you have to use the move tool and the Transform panel to select the lines you drew and check / correct the lengths in the Transform panel. Thank you, that works reasonably well. I seem to have messed up using the "quote" button again, eventually I will understand how the forum works. Quote Link to comment Share on other sites More sharing options...
Searcher1851 Posted May 9, 2021 Author Share Posted May 9, 2021 31 minutes ago, BofG said: You have to draw a line (of any length) first, then in the bottom right of the screen you can type in the actual desired length. Thank you, I guess you are also referring to the Transform tool as suggested by Old Bruce. Quote Link to comment Share on other sites More sharing options...
