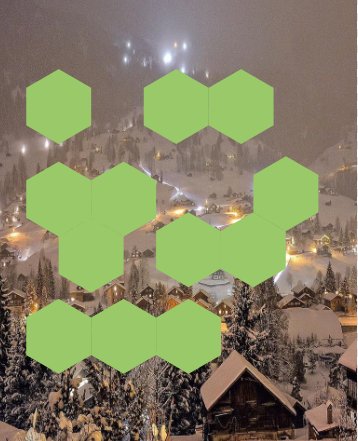

CylonRaven Posted November 22, 2020 Share Posted November 22, 2020 Despite thinking I had a pretty good handle on selections and masks, I find myself unable to figure out what I am sure is the simplest way to do something.... In the picture below, I have a bunch of shapes (as Groups, consisting of Curves), and an image which I want to drag across all the shapes and appear only within the hexes. Essentially, turn all the individual hex groups into a mask that reveals the image layer, while the rest of the board remains transparent. I can select an individual group and choose Selection from Layer, and I guess I could save that selection, and the one by one add each group to a new saved selection until I have a selection consisting of all the groups, and then turn it into a layer mask, but seems like there is probably a simpler technique. Quote Link to comment Share on other sites More sharing options...
Staff Dan C Posted November 24, 2020 Staff Share Posted November 24, 2020 Hi @CylonRaven, My sincerest apologies for the delayed response here! I certainly believe there is an easier method using Clipping & Masking layers. Could you please provide a copy of this document, so I can provide an example using this? Many thanks in advance Quote Please note - I am currently out of the office for a short while whilst recovering from surgery (nothing serious!), therefore will not be available on the Forums during this time. Should you require a response from the team in a thread I have previously replied in - please Create a New Thread and our team will be sure to reply as soon as possible. Many thanks! Link to comment Share on other sites More sharing options...
Move Along People Posted November 24, 2020 Share Posted November 24, 2020 - Quote Move Along people,nothing to see here Link to comment Share on other sites More sharing options...
Gear maker Posted November 24, 2020 Share Posted November 24, 2020 On 11/22/2020 at 11:04 AM, CylonRaven said: I have a bunch of shapes (as Groups, consisting of Curves), and an image which I want to drag across all the shapes and appear only within the hexes. Essentially, turn all the individual hex groups into a mask that reveals the image layer, while the rest of the board remains transparent. How about if you select all the hexes then do either an add or a merge to make your mask? Quote iMac (27-inch, Late 2009) with macOS Sierra Link to comment Share on other sites More sharing options...
Alfred Posted November 24, 2020 Share Posted November 24, 2020 Go to the Layers panel, group the hexagons, drag the group and drop it onto the thumbnail of the image layer. Quote Alfred Affinity Designer/Photo/Publisher 2 for Windows • Windows 10 Home/Pro Affinity Designer/Photo/Publisher 2 for iPad • iPadOS 17.4.1 (iPad 7th gen) Link to comment Share on other sites More sharing options...
Dazmondo77 Posted November 24, 2020 Share Posted November 24, 2020 The great thing about affinity is how you can use any shape or pic as a mask plus it's dead easy to reposition if you want to rejig your composition rather than just rely on a standard layer mask Screen_Grab_2020-11-24_at_13_36_33.mov Screen_Grab_2020-11-24_at_13_44_08.mov Quote Mac Pro Cheese-grater (Early 2009) 2.93 GHz 6-Core Intel Xeon 48 GB 1333 MHz DDR3 ECC Ram, Sapphire Pulse Radeon RX 580 8GB GDDR5, Ugee 19" Graphics Tablet Monitor Triple boot via OCLP 1.2.1 - Mac OS Monterey 12.7.1, Sonoma 14.1.1 and Mojave 10.14.6 Affinity Publisher, Designer and Photo 1.10.5 - 2.2.1 www.bingercreative.co.uk Link to comment Share on other sites More sharing options...
CylonRaven Posted November 25, 2020 Author Share Posted November 25, 2020 This is helpful, especially Dazmondo77's videos. But I got stuck right here: How did you get the transparent hexes as a mask over the dog image? Here are my layers after I dragged a filled rectangle under my groups like you did and "punched" through them with Subtract. One problem I seem to have is that my hexes are not merely polygons. Each one is actually a group consisting of two polygons (an inner and outer hex outline) and an ellipse (a center dot). So I can't highlight the groups and subtract from the blue rectangle mask, I had to open each one and select just the outer hex polygon from each (using Ctrl+Click to multiselect). Is my only real option to use only single-polygon hexes for this? I notice you are working in Publisher but switching to Designer to do the layer editing. Not sure if that made the difference. Quote Link to comment Share on other sites More sharing options...
