Stroke conversion

[Imzan Hussein]

I just  bought a Trotec Laser Speedy 400 and I am using Affinity software to design projects to laser etched and cut. In order for the laser machine to recognize a cut area, the specifications are specific. They are  RGB. R-255 G-0 B-0 which translates to Red, the cut line needs to be 0.072 mm.  Currently the stroke in Affinity can only be pt. I cannot find any option the change it to mm. I had to download a freeware called Inkscape to help with that feature. Please advise

[CPC]

Imzan,

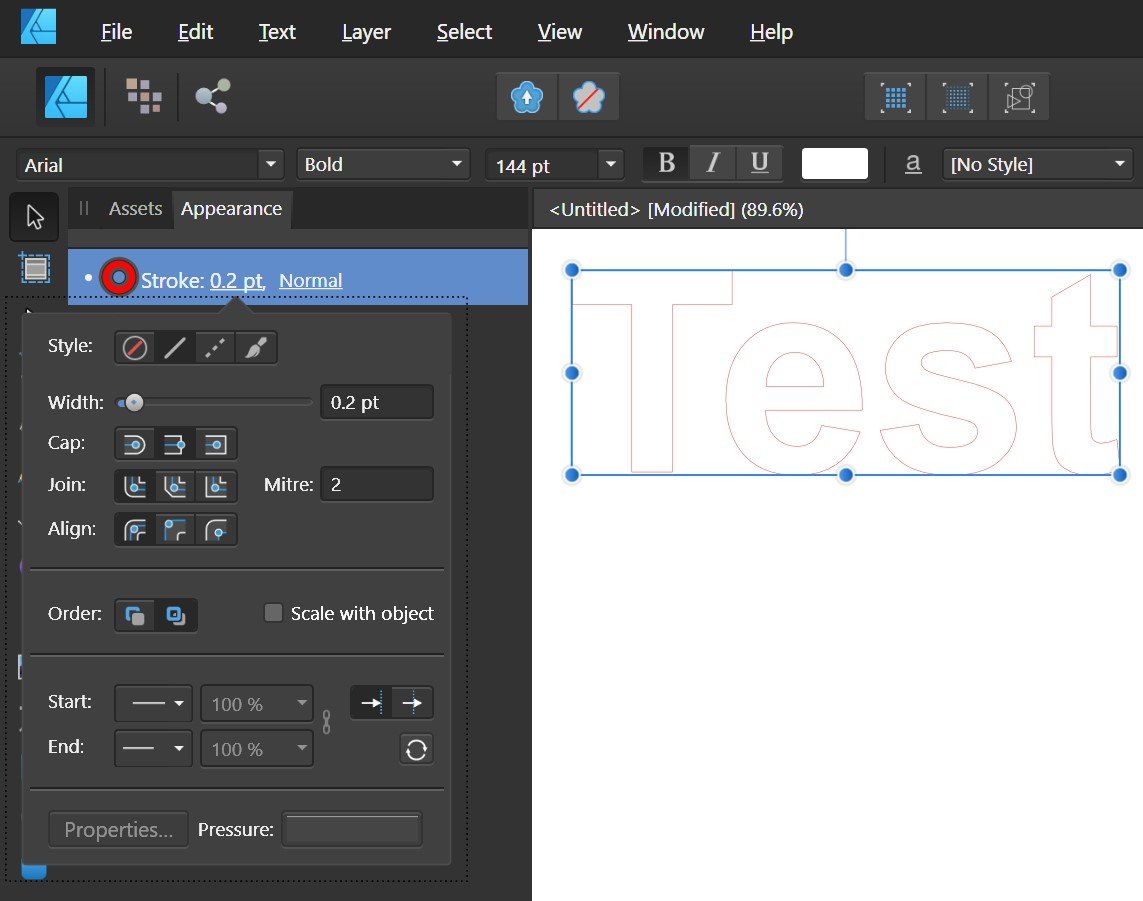

Google says 1.0 mm = 2.83465 points, so your 0.072 mm = 0.20409 points. Might not 0.2 points (0.0705556 mm) be close enough?

I don't think you can get closer than that as AF Designer seems limited to entering tenths of units.

Regards, Carl



[carl123]

6 hours ago, Imzan Hussein said:

Currently the stroke in Affinity can only be pt. I cannot find any option the change it to mm

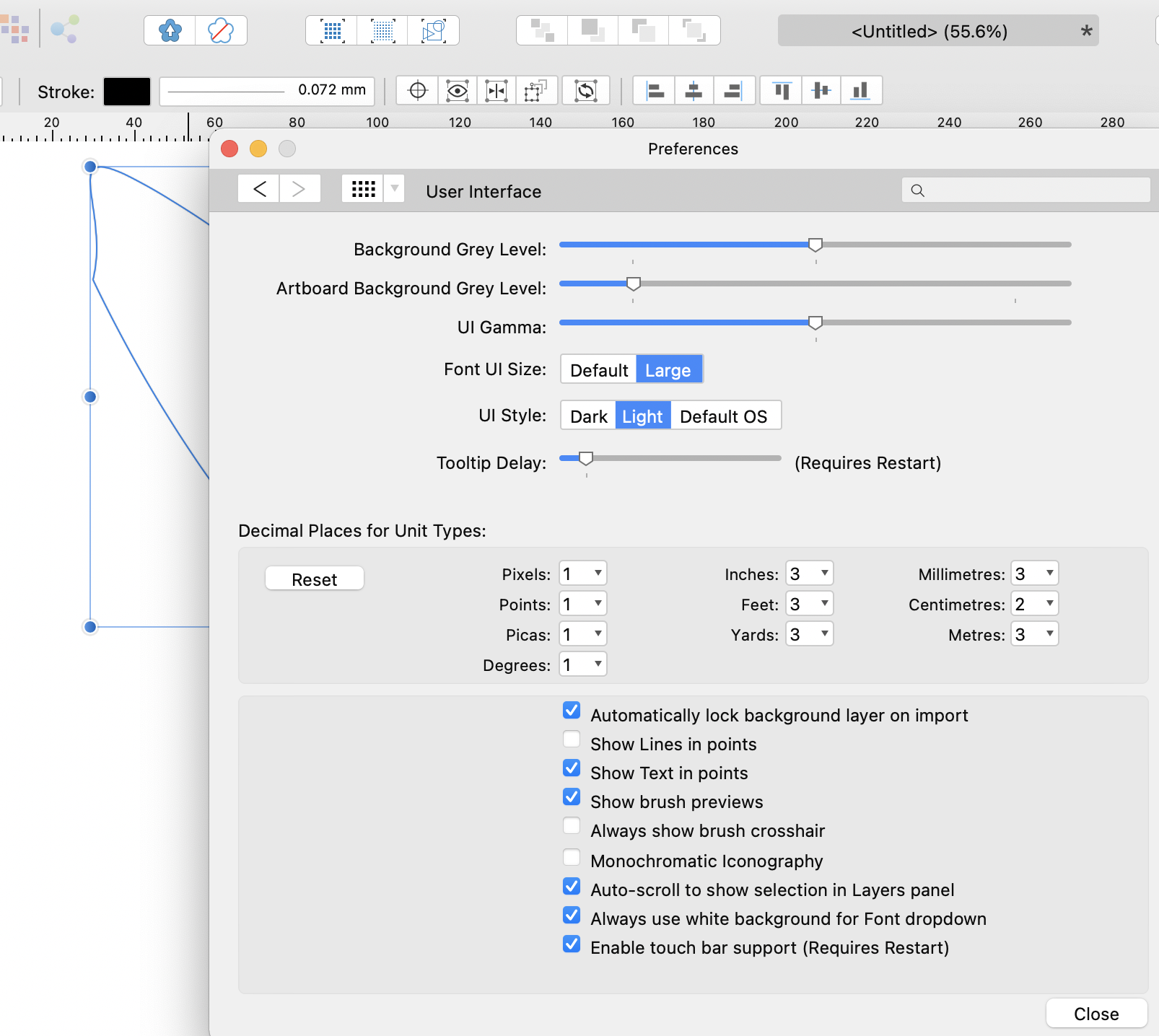

You can change the Document's Units to mm (if not already) but you also need to ensure that in Edit > Preferences > User Interface, the option for Show lines in points is not selected.

Alternatively, you can just type 0.072mm directly in the stoke dimension field. (It will be converted back to points, but it will be 0.072mm)

[h_d]

You'll also need to change the default number of decimal places for millimetres from 1 to 3:

[CPC]

Big thanks to carl123 & h_d for some new tips... Typing in alternate units and change of decimal places for display.
