How to center text according to circular or square selection

[aymanzone]

Hi,



In Affinity Photo, how can I center text (or image) within a selected area (circle or a square area). I might have a red circle on the upper right corner and I want center the text (small word) inside the red circle.

visual example:
https://imgur.com/zerEj7m



Thanks

Edited November 10, 2020 by aymanzone

[carl123]

Select both the text and the shape, then...

Arrange > Align Centre
Arrange > Align Middle

[aymanzone]

hi @carl123

Thanks for reply.

Yup, I followed your suggestions. "20" number is moving to the center of the page instead of the center of the red circle I selected.

https://imgur.com/1GRGgpy



[carl123]

2 minutes ago, aymanzone said:

moving to the center of the page instead of the center of the circle



That suggests you only have the number selected

In the Layers panels make sure you have both the number and the circle highlighted (i.e. both selected at the same time) before doing the arrange commands

[aymanzone]

Strange, I'm still getting same result.

I selected two items the circle and the zero (proof in layers) https://imgur.com/AlrwlGa

But it takes me to center of page instead of center of circle.

[carl123]

You should not have/need "dotted lines to indicate selection"

Clear any selection (dots) then use Move Tool to select the 2 layers in Layer panel then Arrange

If still not working, please try to upload a full-screen video clip so we can see what you are doing

[GarryP]

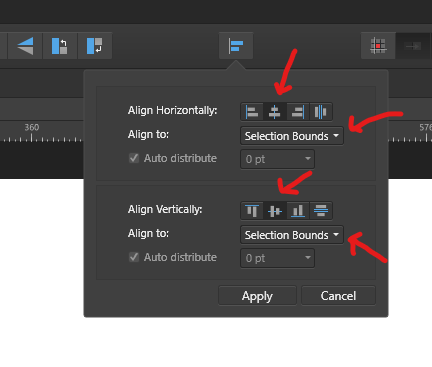

In addition to the advice above, remember to set the “Align To” in the pop-up to “Selection Bounds”, as can be seen in my attached image.

[aymanzone]

Thanks guys,

I've been doing both things. I'm going to research and post back here when I find something.
