kentsor Posted October 13, 2020 Share Posted October 13, 2020 When I export a design like the attached image to svg and open it in another applications I see the paths but the stroke information not there. This is for vinyl cutting so only edges matter. I guess what I'm asking is how to turn a path with a stroke into two paths, inside and outside edges. There is clearly something I'm not understanding here, please bear with me. Quote Link to comment Share on other sites More sharing options...

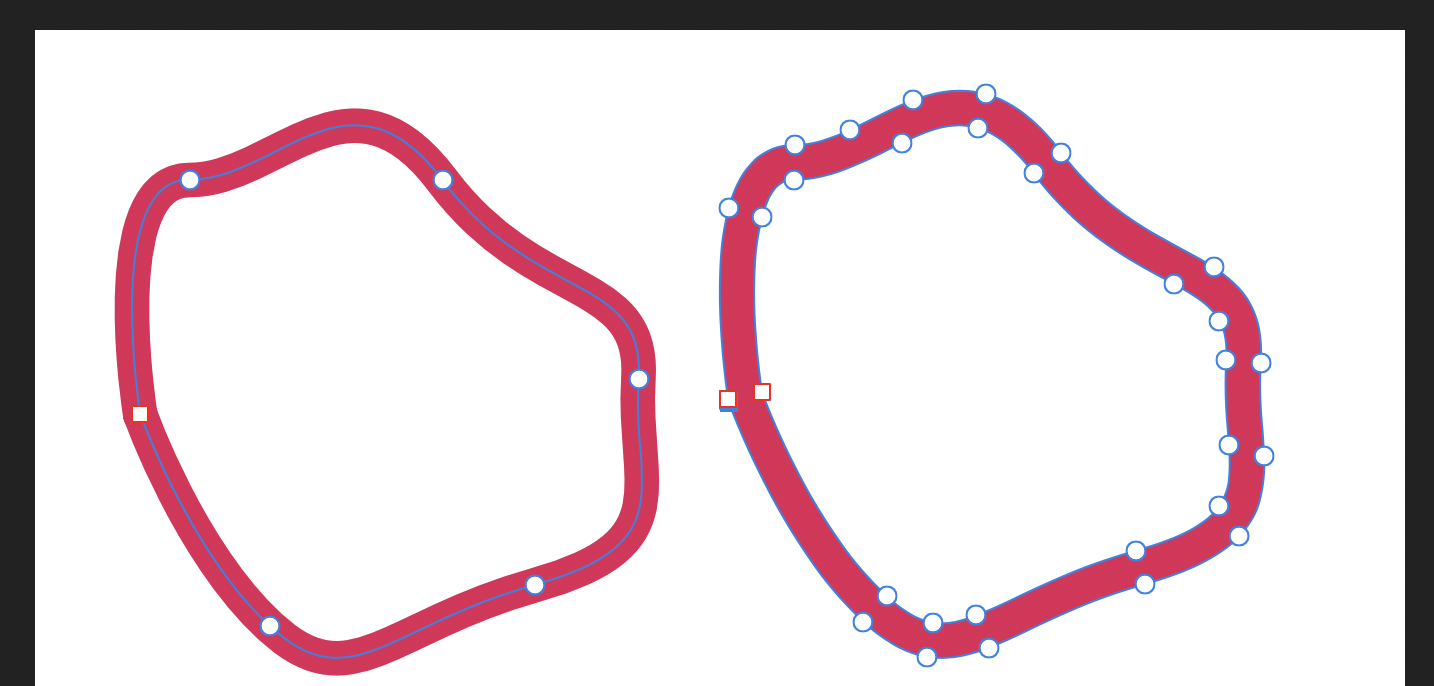

h_d Posted October 13, 2020 Share Posted October 13, 2020 Assuming this is in Designer, I think Layer-Expand Stroke should do what you want. This basically creates an outlined shape from the selected curve. You should be aware that it's a destructive operation - the source curve is not automatically retained - so you may want to duplicate your original Curve layers before applying it. Before & after: kentsor 1 Quote Affinity Photo 2.5.3, Affinity Designer 2.5.3, Affinity Publisher 2.5.3, Mac OSX 14.5, 2018 MacBook Pro 15" Intel. Link to comment Share on other sites More sharing options...
kentsor Posted October 13, 2020 Author Share Posted October 13, 2020 Ah, neat, so many features I never noticed, Thanks! Quote Link to comment Share on other sites More sharing options...
