DESIGNER - Stroke Brush is not exported without Rasterising

[BastianN]

At first sorry for my bad English.
In my first Affinity Project I developed a logo by using curves and filled the Strokes with a Brush.
Everything looks just as I imagined.

But if I want to export it now as a not rasterized File the used brush disappears and is replaced by a standard brush.
The problem occurs with both: PDF and SVG. All Pixel based File-Formats like JPG or TIFF work great.
I need the File as Vector based PDF.

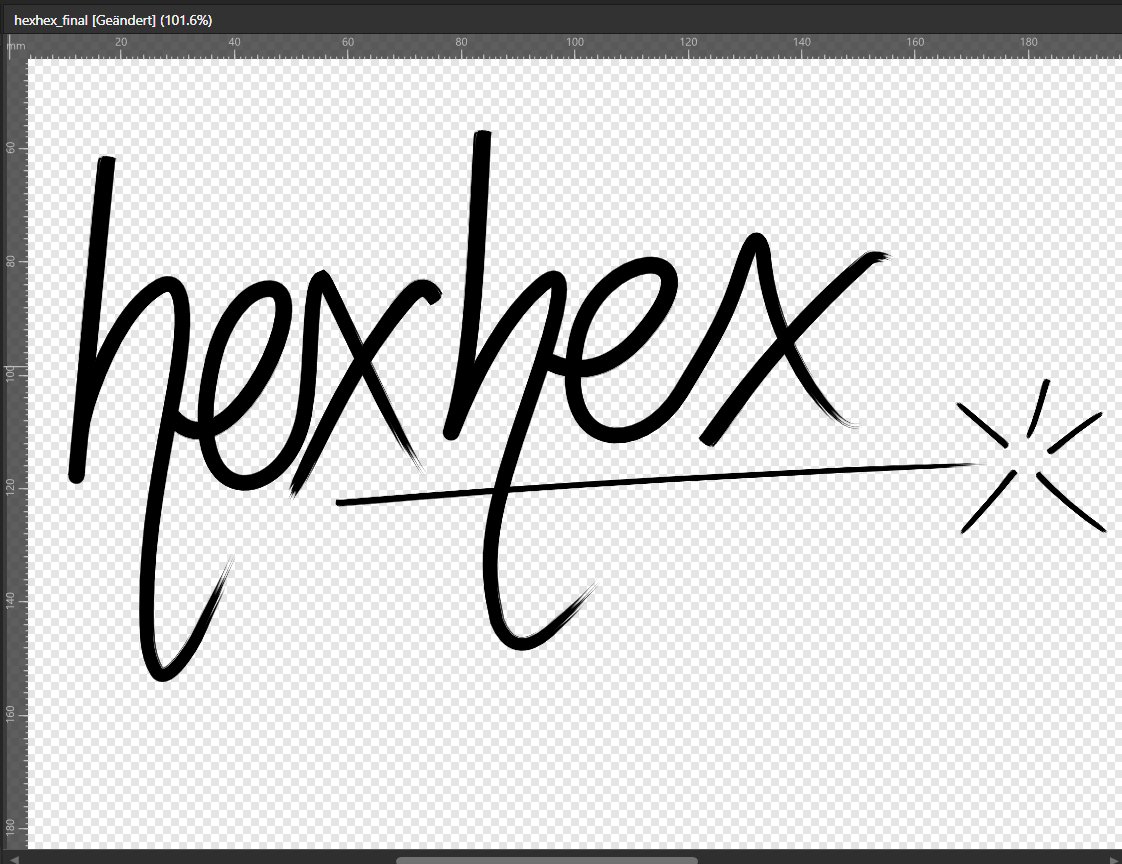

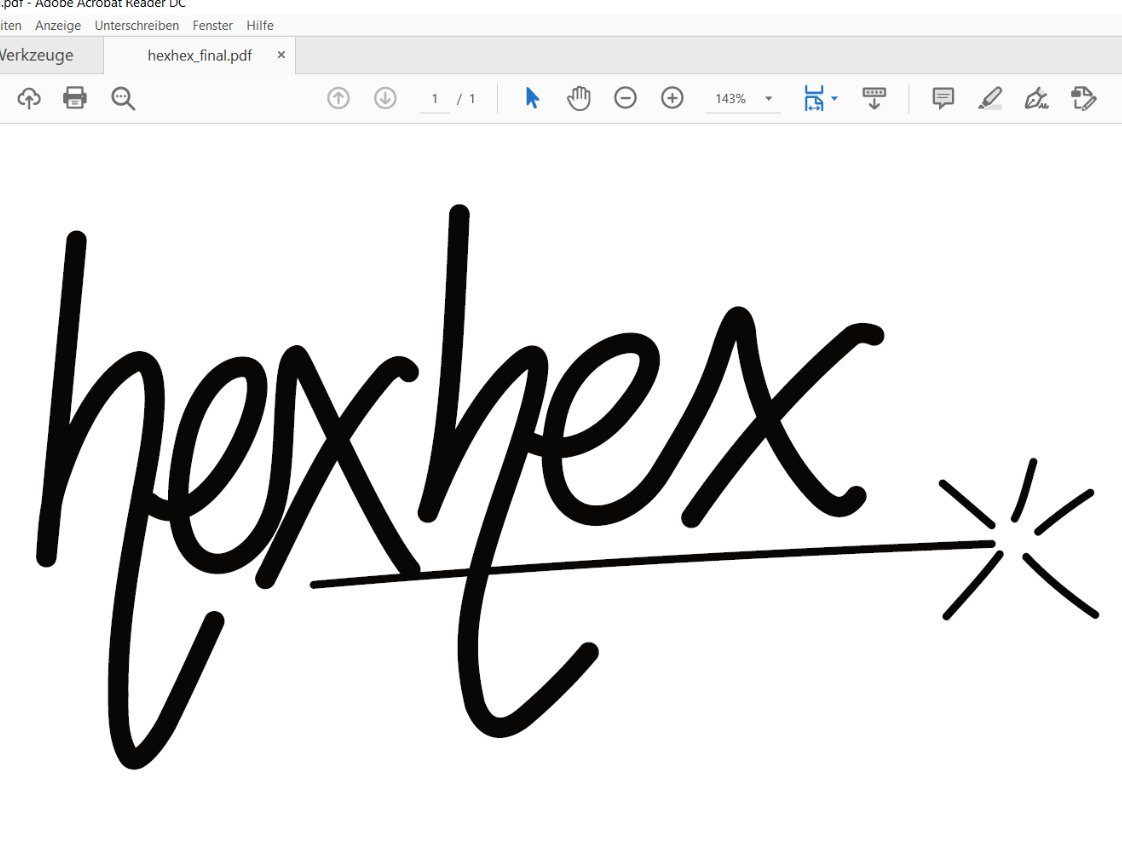

I attached a screen from Designer and the Result in PDF. I attached also the afdesign file.
Is there any setting that I have overlooked?















hexhex_final.afdesign

Edited September 29, 2020 by BastianN

[Dan C]

Hi @BastianN,

Welcome to the forums

I can see you have applied a Textured Brush Stroke to these curves, unfortunately these cannot be 'Expanded' or retained in vector format, so they have to be rasterised when exporting to PDF / SVG formats, my apologies!

[BastianN]

Ok, thank you for that Information. Make sense.

Is there any Option to convert the Stroke into a closed shape, maybe that will work also.

[lepr]

2 hours ago, BastianN said:

Ok, thank you for that Information. Make sense.

Is there any Option to convert the Stroke into a closed shape, maybe that will work also.

You will not get that brush-like stroke to convert to a vector shape. Affinity Vector Brushes currently are not vector brushes, except for the one that's just like a regular stroke. They stretch or repeat a raster image along a vector path.
