b-badass Posted August 12, 2020 Share Posted August 12, 2020 I would like to establish a grid of equilateral triangles with a horizontal base line. When I select View > Grids and Axis Manager... (which resolves to Grids and Snapping Axis) > Grid Type > Triangular, I get the grid I want only rotated by 90º from what I want. When I instead select Grid Type > Horizontal Triangular, I get a horizontal grid of rhombuses (equilateral parallelograms) not equilateral triangles. This would be fine if I could add the missing third axis but I have not been able to discover how to accomplish this. I believe this represents a bug in the Horizontal Triangular function. A perhaps related issue is that when I tick the checkbox for "Show axis editing handles" I am unable to adjust the angle of the axes when I hold down the ⌘ key (as documentation instructs that I should be able to), the result is only to change the grid size, just as if I were not holding down the ⌘ key. Quote Link to comment Share on other sites More sharing options...
GarryP Posted August 13, 2020 Share Posted August 13, 2020 Welcome to the forums. Would you be able to show us a mock-up of what you want the grid to look like? If you manually draw enough of what you want so we can see what your requirements are it will give us a better idea than a description. Quote Link to comment Share on other sites More sharing options...
lacerto Posted August 13, 2020 Share Posted August 13, 2020 (...) Alfred 1 Quote Link to comment Share on other sites More sharing options...
b-badass Posted August 13, 2020 Author Share Posted August 13, 2020 Thanks, GarryP. I was going to address your question but then Lagarto nailed it exactly. THANK YOU, Legarto! That's precisely what we are trying to accomplish. I would suggest this is what should be delivered automatically when one selects Grid type > Horizontal triangular. (Maybe there could also be a Horizontal rhombus setting as well, to accomplish what the Horizontal triangular setting is currently delivering.) Anyway, thanks again, Legarto! lacerto 1 Quote Link to comment Share on other sites More sharing options...

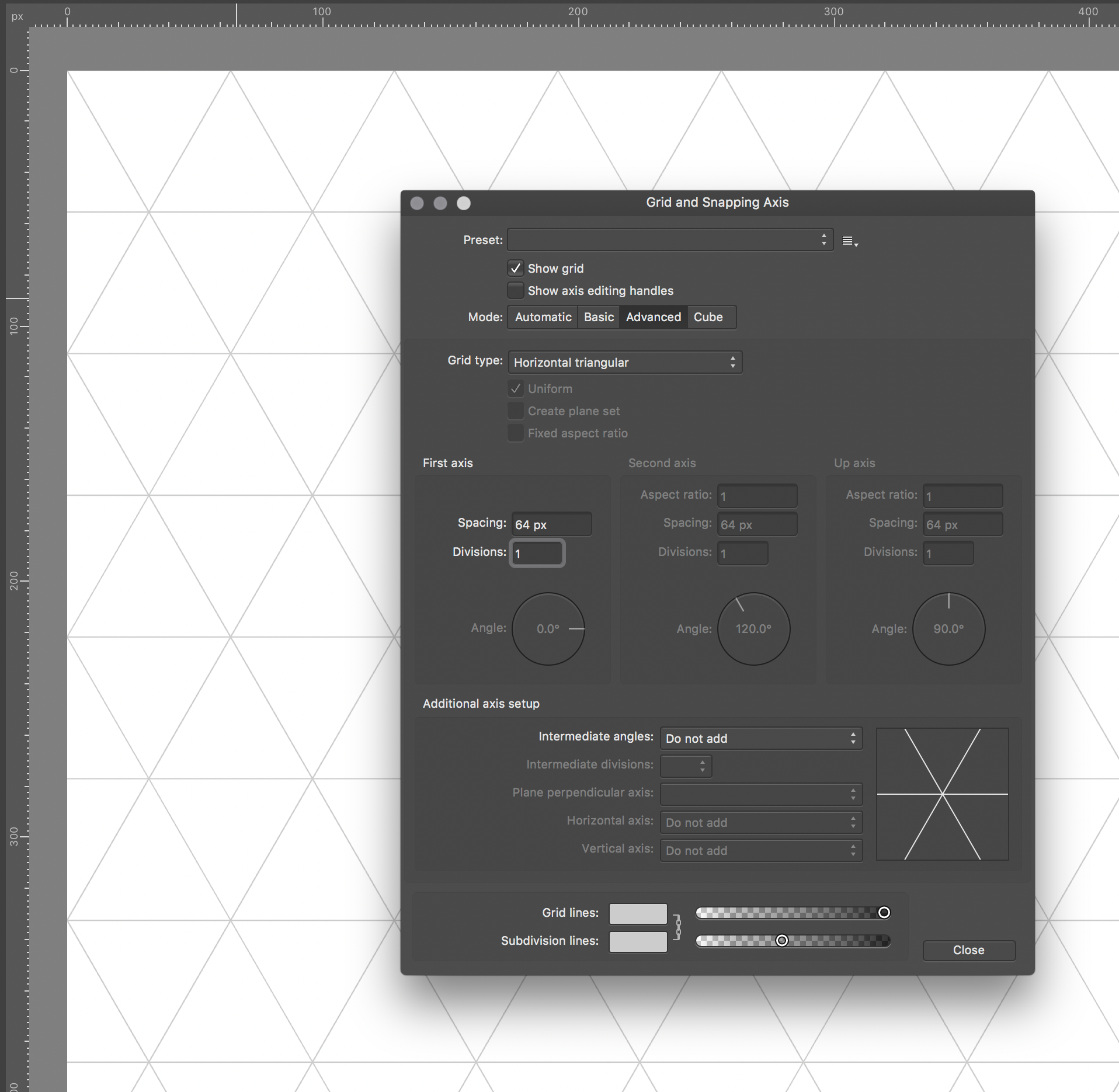

lepr Posted August 13, 2020 Share Posted August 13, 2020 "Horizontal triangular" appears to be correct in AD 1.8.4 on my Mac: Quote Link to comment Share on other sites More sharing options...
lacerto Posted August 13, 2020 Share Posted August 13, 2020 (...) Quote Link to comment Share on other sites More sharing options...

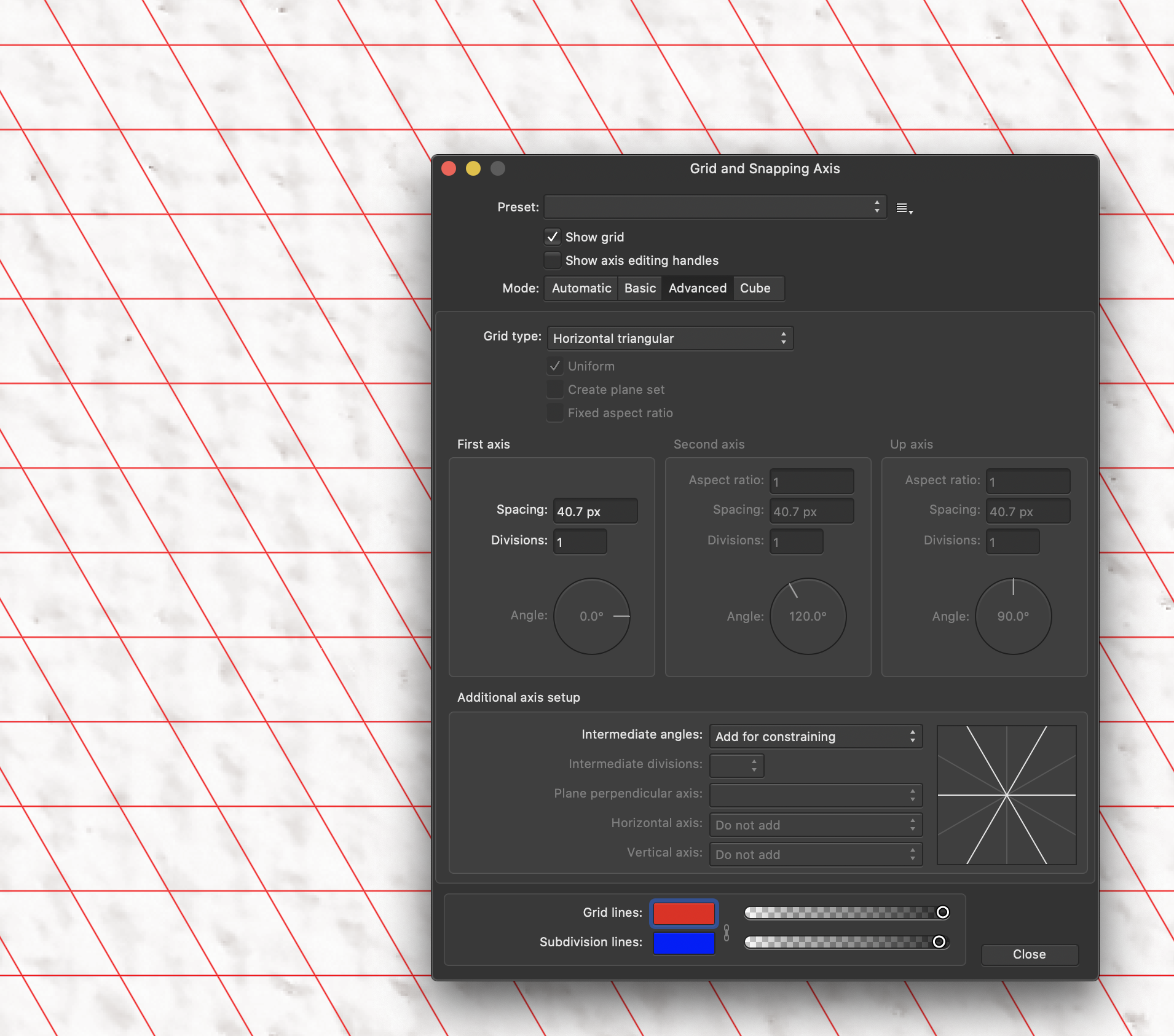

b-badass Posted August 14, 2020 Author Share Posted August 14, 2020 Thanks, anon2 and Legato. I'm sure that's it; I'm actually on AD 1.8.3. But... After updating to AD 1.8.4 (via the Apple App Store), I still have the same problem: Grid type > Horizontal triangular gives me horizontal rhombuses. Which make me think there is a setting somewhere that I have set differently than the two of you, anon2 and Lagarto. Could that be the case? Or could it be that the Apple App Store version of AD is persnickety different than the Affinity website version? Quote Link to comment Share on other sites More sharing options...
Staff Dan C Posted August 14, 2020 Staff Share Posted August 14, 2020 @b-badass I have replicated this issue here on Mac so I'm logging this with our developers now - Lagarto is using Windows, however I too am unsure why anon2 is seeing different results on the same operating system as us. @anon2 Are you using the Mac App Store or Affinity Store version? Which OSx version is installed? Are you by chance running a beta version, or the full retail version? Edit - are you using Metal Hardware Acceleration? It appears this setting also affects how grids are drawn. Many thanks! Quote Link to comment Share on other sites More sharing options...
lacerto Posted August 14, 2020 Share Posted August 14, 2020 (...) Quote Link to comment Share on other sites More sharing options...
Staff Dan C Posted August 14, 2020 Staff Share Posted August 14, 2020 Thanks for the info, from my testing it definitely seems OS specific to Mac - and further to this the Metal Hardware Acceleration option appears to be the cause of certain users seeing different results on Mac, hopefully confirmation from anon2 can attest to this Quote Link to comment Share on other sites More sharing options...
lepr Posted August 14, 2020 Share Posted August 14, 2020 47 minutes ago, Dan C said: Thanks for the info, from my testing it definitely seems OS specific to Mac - and further to this the Metal Hardware Acceleration option appears to be the cause of certain users seeing different results on Mac, hopefully confirmation from anon2 can attest to this AD 1.8.4 from Mac App Store. Metal results in equilateral triangles. OpenGL results in rhombuses as shown by b-badass. Dan C 1 Quote Link to comment Share on other sites More sharing options...
Staff Dan C Posted August 14, 2020 Staff Share Posted August 14, 2020 I suspected as much - many thanks for confirming! I'll add this information to the development log and we hope to have this fixed shortly. I hope this helps lepr 1 Quote Link to comment Share on other sites More sharing options...
b-badass Posted August 14, 2020 Author Share Posted August 14, 2020 (edited) Thanks Dan C, anon2, and Lagarto. Yes, I'm using Mac App Store ver. 1.8.3 and now 1.8.4, full retail version . Not sure about the Metal Hardware Accelerator vs OpenGL discrepancy but clearly anon2 has shown that this is the issue. In the meantime, thanks again Lagarto, for the Triangular custom First and Second Axis angle workaround. Running OSX Catalina 10.15.6. Edited August 14, 2020 by b-badass lacerto 1 Quote Link to comment Share on other sites More sharing options...

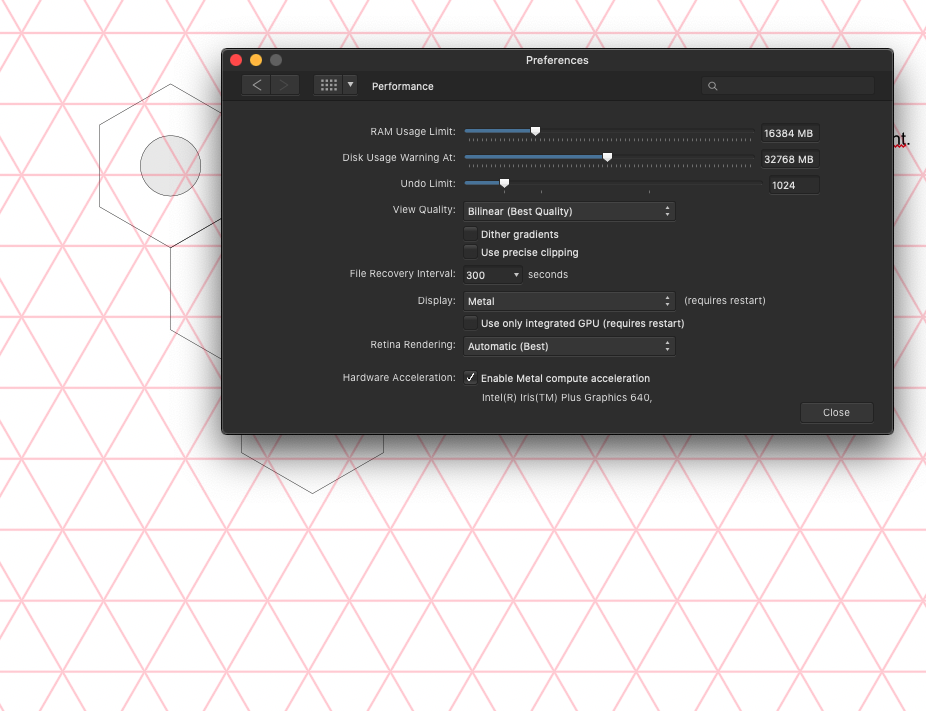

JensPoder Posted December 6, 2020 Share Posted December 6, 2020 Thank you so much for help on this one! I couldn't understand. Changing to metal under performance in preferences solved the problem. I'm running 1.8.6 version (non-app-store version) Quote Link to comment Share on other sites More sharing options...
