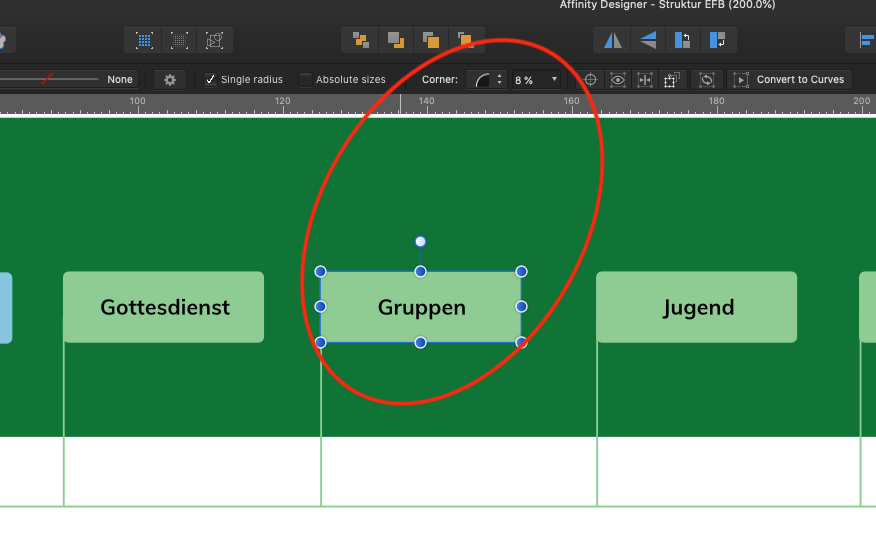

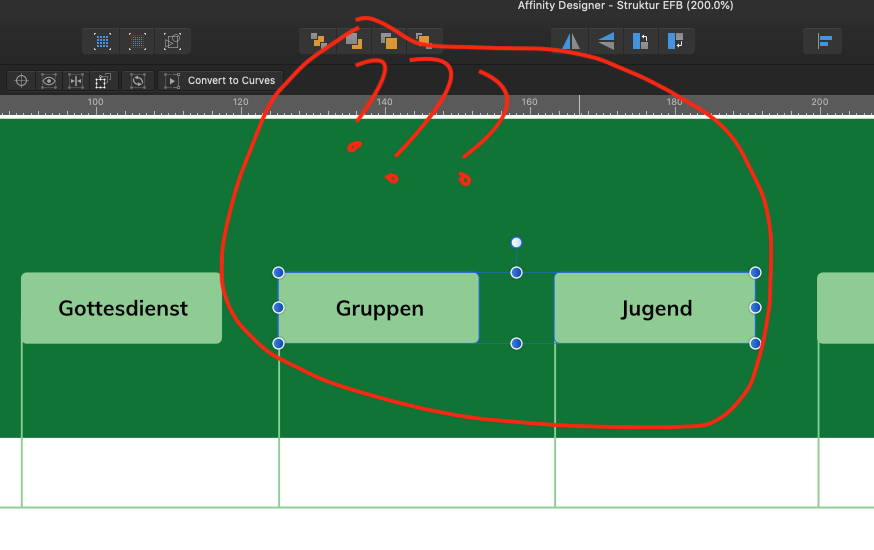

Maiko Müller Posted December 19, 2019 Posted December 19, 2019 (edited) In Affinity Designer, I want to change the corner radius on more than one objects at the same time. I can select these multiple vector objects, but then I can't access the properties panel. I would have to individually select each object, change the corner radius, go on to the next object, etc. Can you help me? Edited December 19, 2019 by Maiko Müller Quote
Joachim_L Posted December 19, 2019 Posted December 19, 2019 I guess there is - as always - an easier way than mine? Select the rectangles, switch to the Corner tool, shift-click all the appearing nodes and make your radius either with dragging one corner or typing in the value into the radius field. Quote ------ Windows 10 | i5-8500 CPU | Intel UHD 630 Graphics | 32 GB RAM | Latest Retail and Beta versions of complete Affinity range installed
GarryP Posted December 19, 2019 Posted December 19, 2019 Welcome to the forums. In this particular case you can create the background rectangle as a Symbol (not including the text), then create multiple instances of the Symbol and they will all change when you change one. Move Along People 1 Quote
Maiko Müller Posted December 19, 2019 Author Posted December 19, 2019 This helps a lot. Thank you. it would be better, when the properties panel kept appearing, like on CorelDraw. Quote
carl123 Posted December 19, 2019 Posted December 19, 2019 Once you select the Rectangles just reselect the Rectangle Tool afterwards and the "properties panel" (context toolbar) will reappear where you can change all corners at once. Move Along People 1 Quote To save time I am currently using an automated AI to reply to some posts on this forum. If any of "my" posts are wrong or appear to be total b*ll*cks they are the ones generated by the AI. If correct they were probably mine. I apologise for any mistakes made by my AI - I'm sure it will improve with time.
Move Along People Posted December 19, 2019 Posted December 19, 2019 - Quote Move Along people,nothing to see here
