Colours Change When Importing PNG to Affinity Publisher

Recommended Posts

I agree, @MikeW

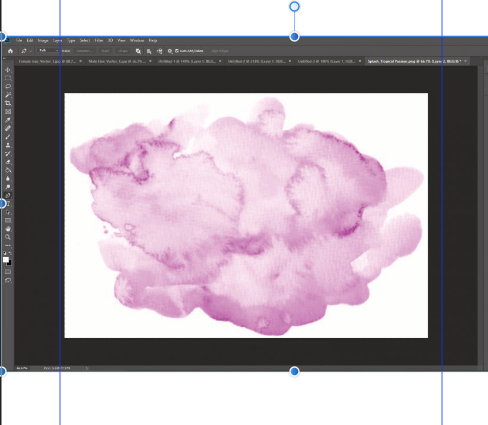

Here's that screenshot pasted into an RGB Publisher document:

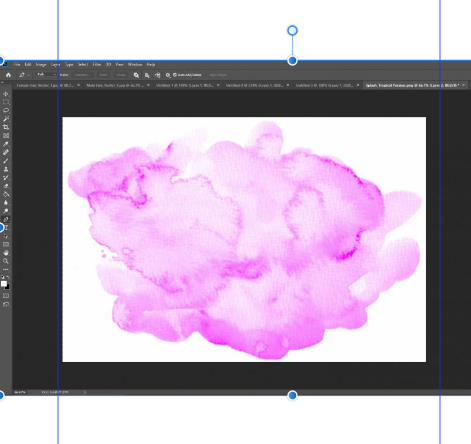

and here it is pasted into a CMYK Publisher document:


-- Walt
Designer, Photo, and Publisher V1 and V2 at latest retail and beta releases
    Desktop:  Windows 11 Pro, version 23H2, 64GB memory, AMD Ryzen 9 5900 12-Core @ 3.00 GHz, NVIDIA GeForce RTX 3090

    Laptop:  Windows 11 Pro, version 23H2, 32GB memory, Intel Core i7-10750H @ 2.60GHz, Intel UHD Graphics Comet Lake GT2 and NVIDIA GeForce RTX 3070 Laptop GPU.
iPad:  iPad Pro M1, 12.9": iPadOS 17.1.2, Apple Pencil 2, Magic Keyboard
Mac:  2023 M2 MacBook Air 15", 16GB memory, macOS Sonoma 14.1.2

Link to comment
Share on other sites

time for some basics my dudes.

RGB and CMYK are inherently different as RGB is literally a screen that emits light while print CMYK absorbs light on paper. (as emulated by your software in the screenshots provided in the opening post). hence your "super shiny" RGB colors will all vanish and that sometimes can completely destroy images in the process

the pros about keeping your workflow in RGB as long as possible is that your files are not tied to any output processes.
lets say you keep everything in RGB, at the end you can convert it into an output medium color space of any choice in one step.

the cons are that your conversion from RGB to CMYK become uncontrollable. if you send RGB files to a printer you have no control over the end result and the printer wont give two fucks if a picture loses lots of details in the conversion.

if you convert everything yourself by hand you can see the effects from going from RGB to CMYK (as in your opening post) and adjust accordingly. the cons is that you work towards one very specific output medium.

see the attached LAB plots. the sRGB space (white) compared to CMYK ISOcoated v2. (colored)
CMYK is much much smaller than sRGB but sRGB cant achieve certain blueish tones.

second screenshot is Adobe RGB instead of sRGB. you can see that in a adobe RGB workflow, you will achieve better results in print.

no printer can output 16bit colors. so the question shouldnt be "8 or 16bit?"
it should be "oh shit am i using sRGB? did i F**k up already?"

if you print it on office printers tho none of this matters.



Bildschirmfoto 2019-11-13 um 09.47.38.png

Bildschirmfoto 2019-11-13 um 09.50.33.png
