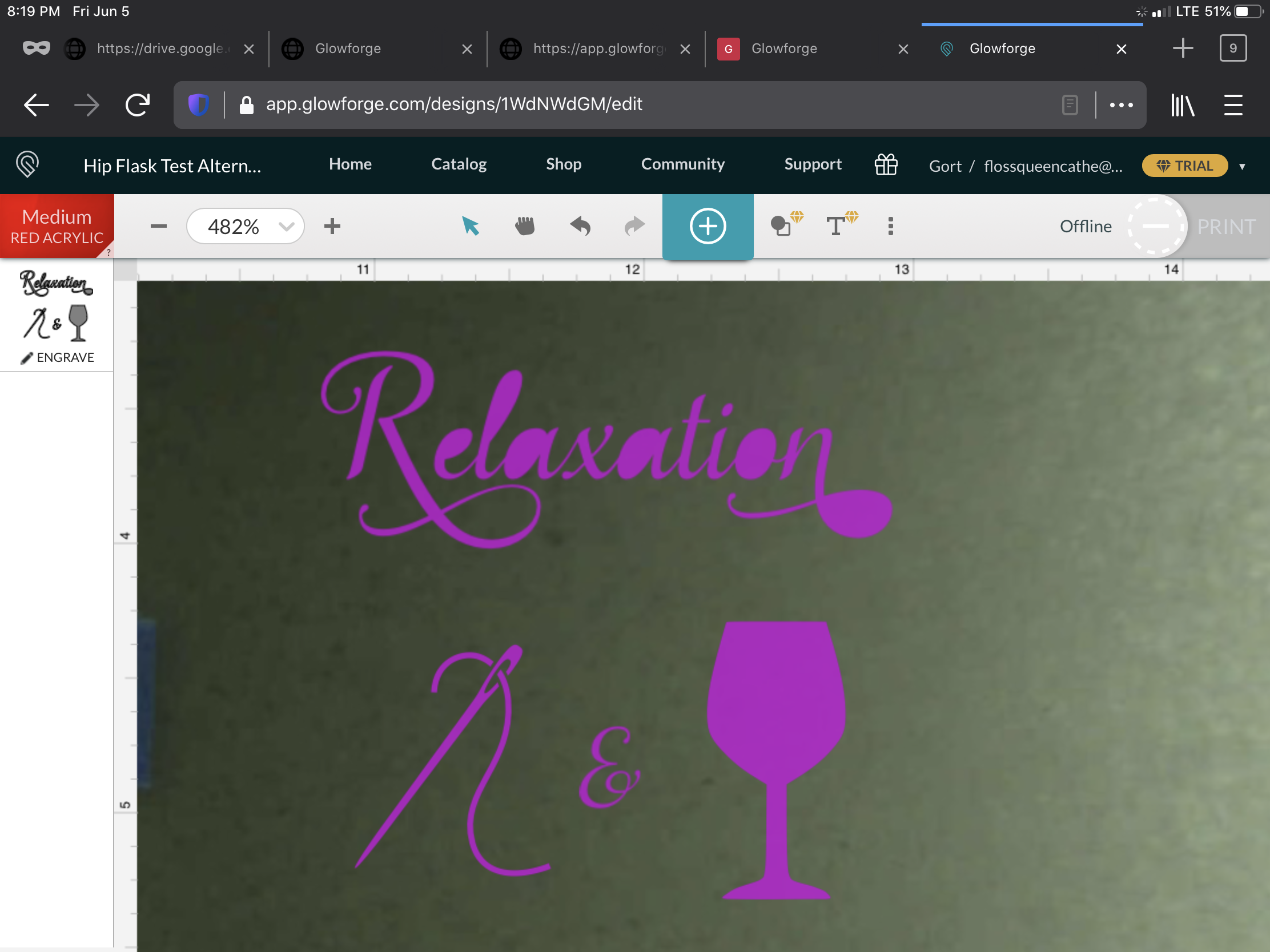

I have a font I use in AD (Samantha) on my iPad that I need to “weld” so it will cut out on my laser. When I use Geometry Add it leaves the middle of the letters like L the same color fill, not blank. I’ve tried setting the layer to Alternate vs Winding and it looks fine in AD but when I bring it into my UI for the laser, it has the same problem. It’s got a fill where it shouldn’t. It doesn’t matter whether I convert it to curves first or not. How do get the letters to connect as one unit and get the blank space on the middle of the letters to be correct. I’m baffled as it why it’s not working. On the photo the R isn’t connected so it’s ok. The rest of the letters are connected and you see what happens. Cathe
So far I have not found this feature in any drawing program. But I think it could be done and it would make technical drawings easier. If I want to draw the wiring of a house I have in Germany a blue and brown line for the the actual electric power and a yellow/green for safety. The catch is, that is is not possible, to draw a line where green and yellow are alternating. I have done some improvisation in CorelDraw by designing a pattern = containing of 45degree lines (kind of hatching) or of concentric circles. Yet in both cases the drawing of powerlines does no longer look „dottet“ or alternating whenever you have a bend. This can lead to the point, that the 45 degree pattern becomes parallel with the powerline drawing. And ist is not possible, to do that, where both colors are drawn parallel. The only way to do this would be to group a yellow and a green line … very cumbersome. CAD-programs for the electric field avoid the problem, by have you just draw one (symbolic) line. But in cases where you need to be more specific, it would be much clearer to have such an option The attached PDF shows part of a drawing where the electric problem was that one had to use the blue and brown line from one source and the yellow/green line from another. So my challenge for the folks of Serif: 1 Offer a feature, that allows to draw lines with alternating color 2 The pattern should stay always at a right angle relative to the direction of the line - during the initial drawing process as well as, when manipiulating the line afterwards like for example rotation or stretching. 3 A not so good fallback position would be, to have a double-line drawn where both colors appear next to each other, because it could look as if that where 2 electric lines = a yellow and a green one.
